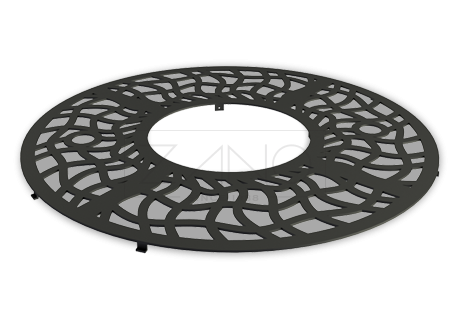

Rosette Tree grille 11.063

Street Furniture with style.

Tree grille is manufactured from durable cast iron

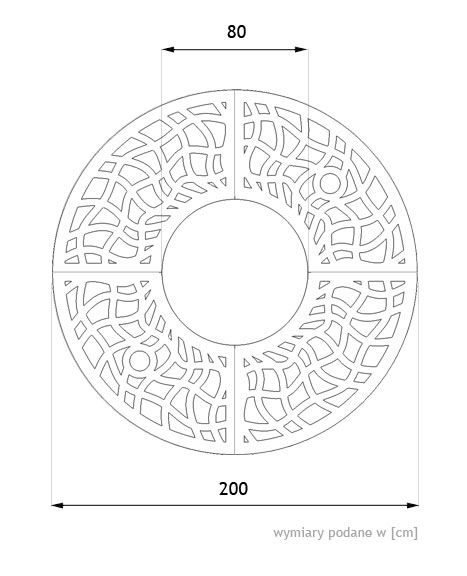

architectural engineering drawing of the 11.063 tree grille

specification Explore all Roll all

Dimensions: expand scroll down

  • grating thickness: 10 mm
  • total thickness including frame: 60 mm
  • diameter Ø 120-200cm
  • diameter of tree hole Ø 50-80cm

Materials: expand scroll down

  • carbon steel thickness: 10 mm

Weight: expand scroll down

  • Ø120: 95 kg
  • Ø150: 135 kg
  • Ø180: 168 kg
  • Ø200: 195 kg

options Explore all Roll all

Grille size: expand scroll down

  • Ø120
  • Ø150
  • Ø180
  • Ø200

catalogue number: 11.063.SC

Contact our representative in your countryoffice@zano.pl+48 12 200 20 53

Description

Tree grilles are very important elements of the city furniture. They allow for irrigation whilst protecting the roots. Presented Rosette tree grille is not only a functional project but also very aesthetic decoration. It add colour, design and interest to streetscapes. Allowing irrigation whilst protecting the roots, ZANO tree grille looks great as stand alone features or as part of a paving scheme. 11.063 tree grille is a round element made of carbon steel, which can be painted in any of RAL palette standard colours.

Modern line

Modern line presents top quality products made of stainless steel and carbon steel. They were designed especially for the modern architecture. What makes them different is that subtle aesthetics based on simple solid, without any unnecessary ornaments.

Our tree guards

Our firm offers necessary equipment to protect tries. Our tree guards secure limb and roots. Thanks to the special design of our guards trees can freely absorb the water from the ground

Producer

As a leading manufacturer in Poland we always do our best to meet the customer’s requirements. ZANO is equally comfortable and experienced designing for different types of street furniture projects. We are passionate about creating beautiful, functional, sustainable models. This is achieved through a process of focused listening that seeks to truly understand and respond to the inherent nuances of each particular client.
