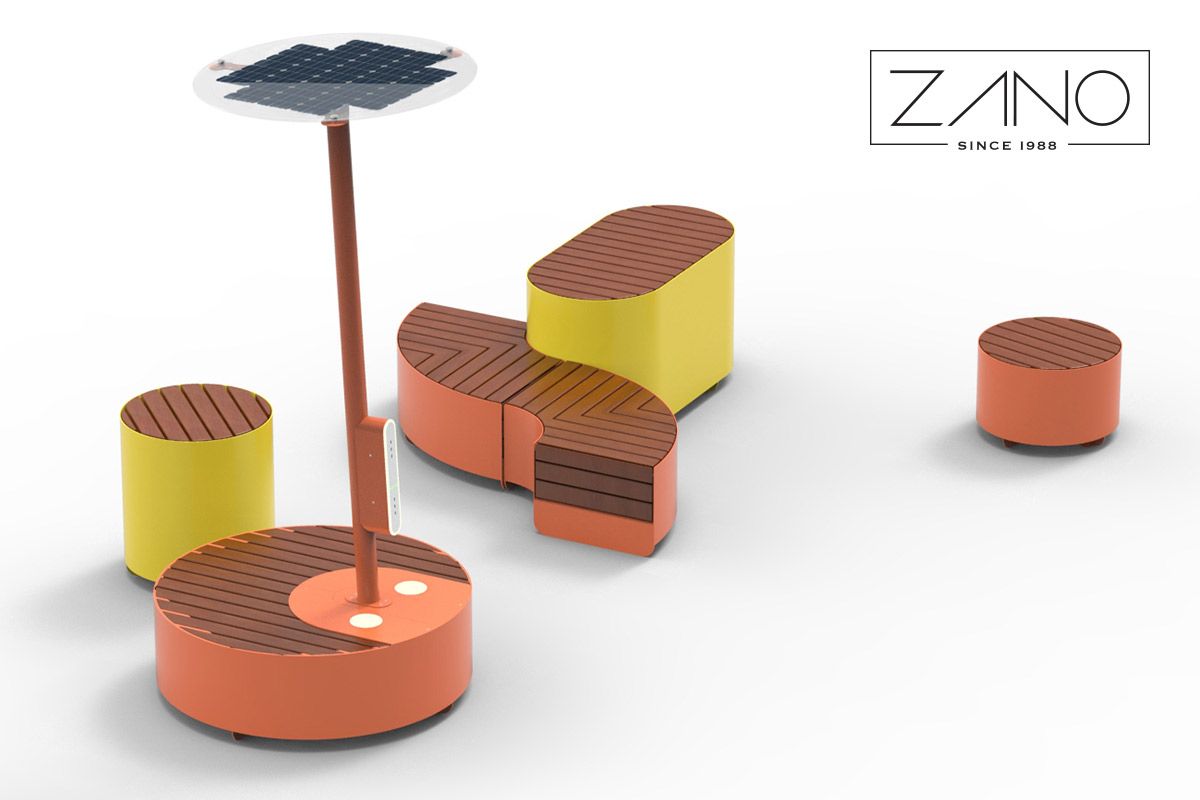

Mobile Phone charging solar station

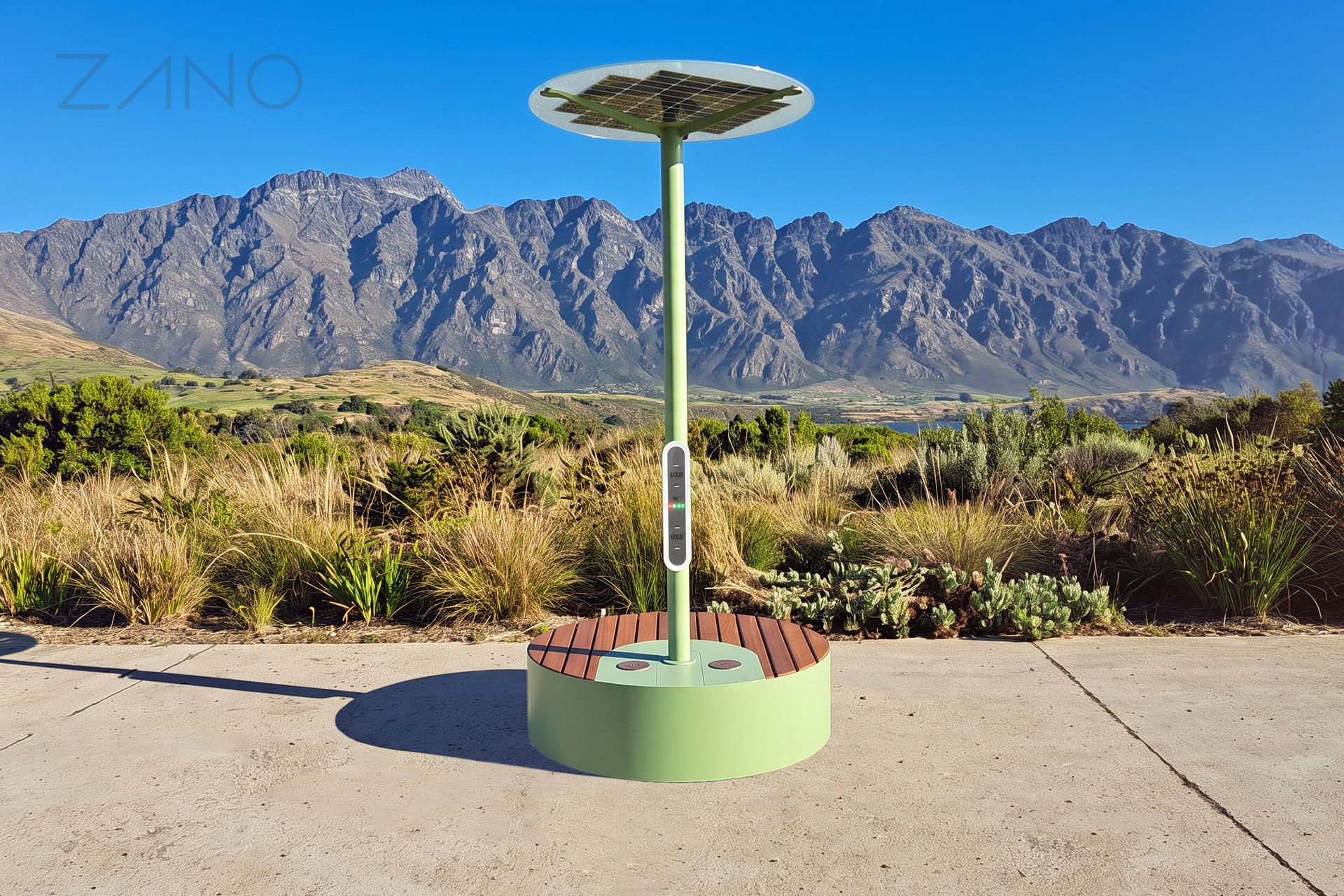

Outdoor charging station
Solar-Powered charging station in outdoor public llaces
Universe solar station with bench made of stainless steeel and exotic wood

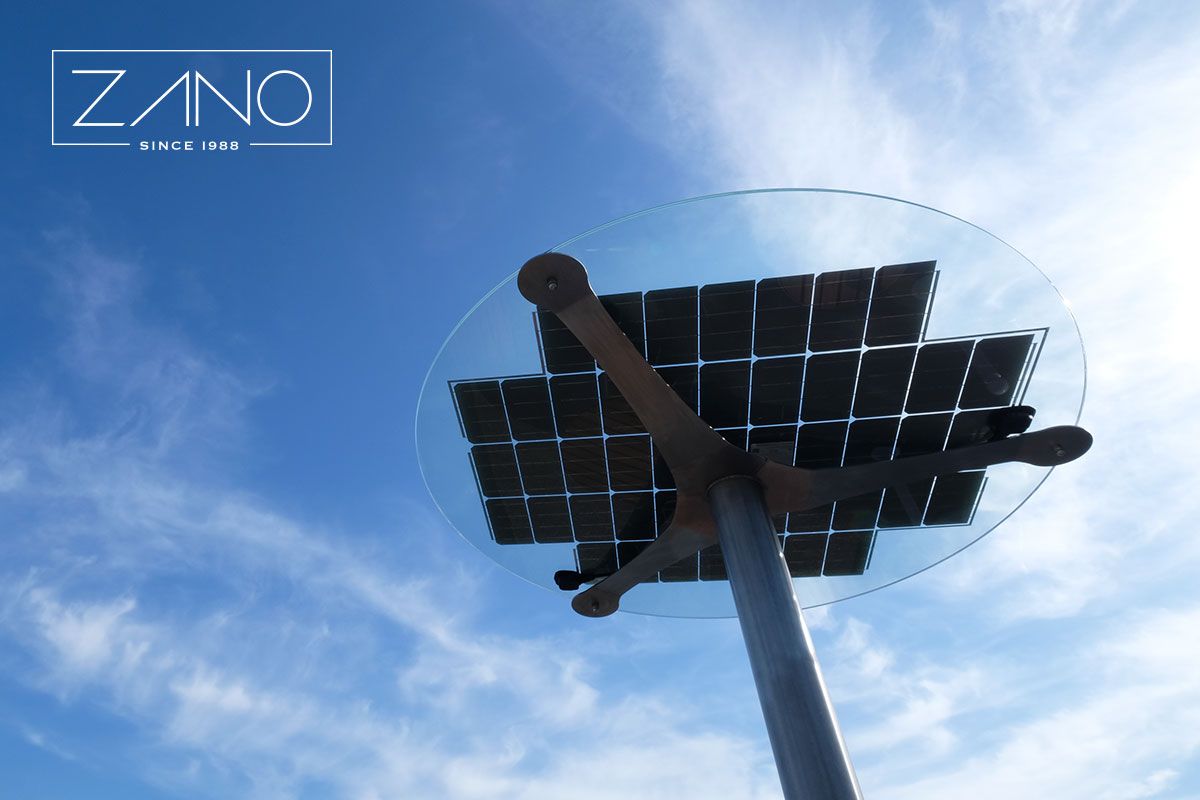

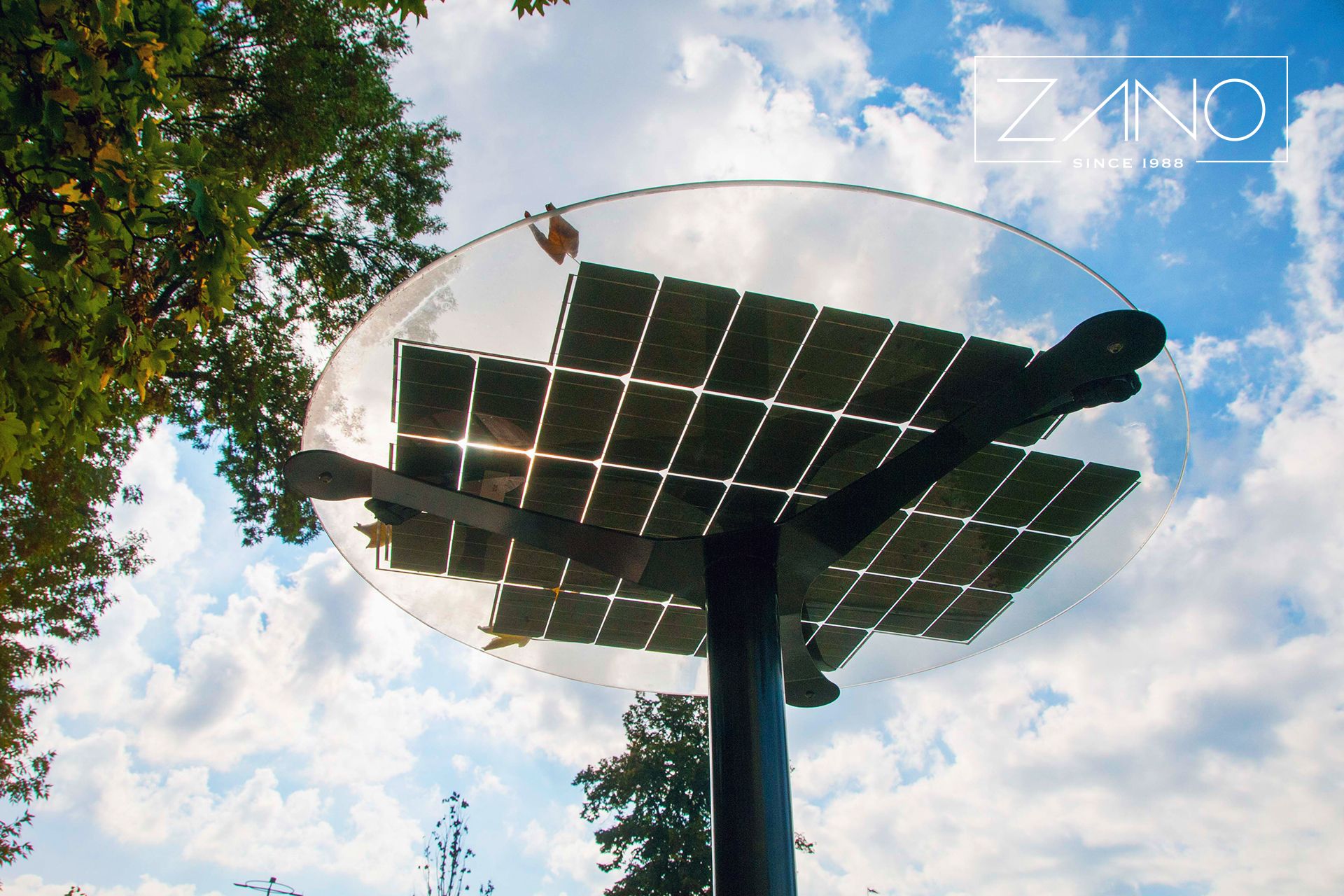

Photovoltaic panels in Universe solar station
solar stations
City bench solar phone charging station

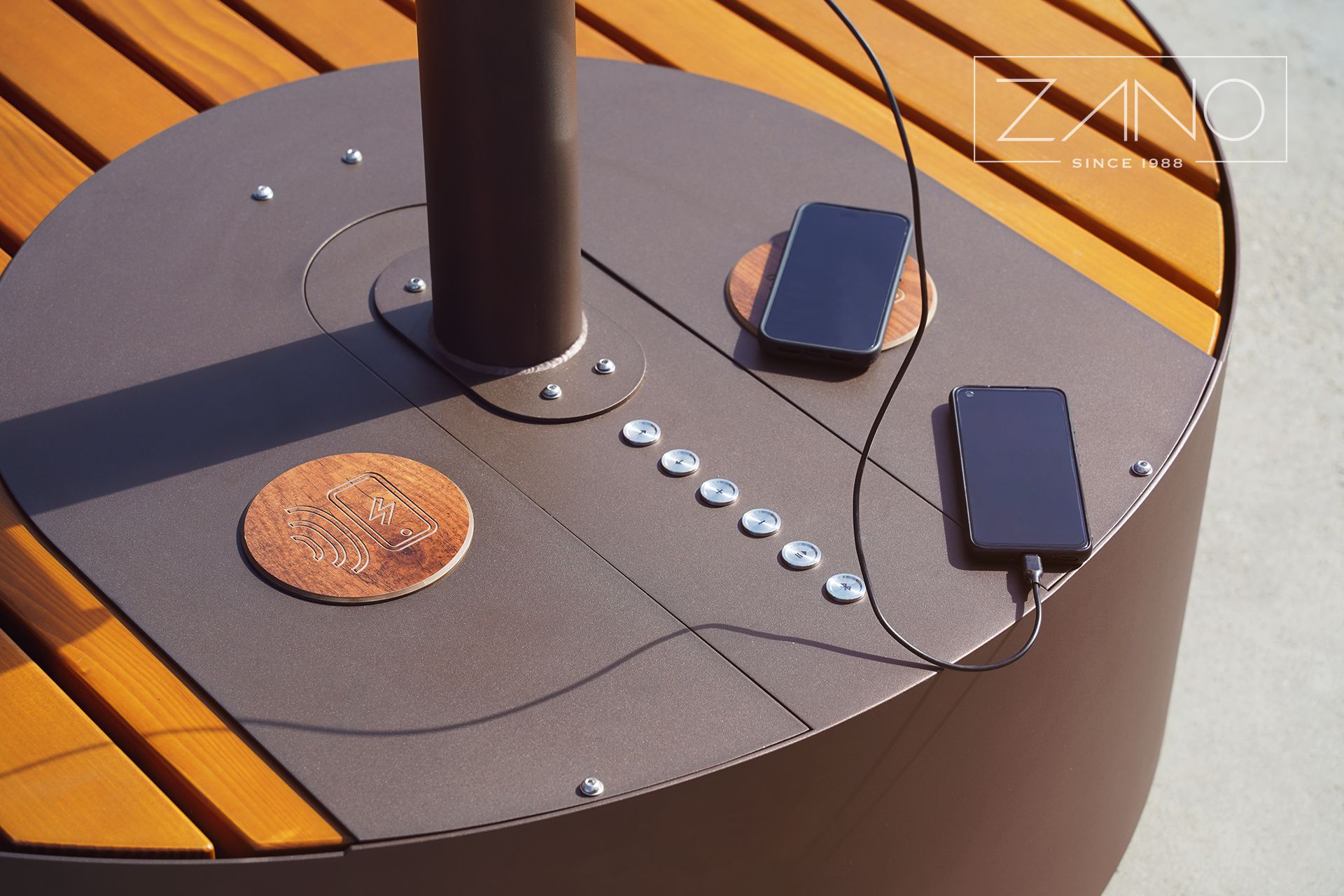

Universe solar station for charging mobile devices
Universe 19.055 Solar Station
Universe 19.055 Solar Station

specification show all hide all

Materials: show hide

  • powder-coated structural steel
  • wood: spruce, pine or exotic wood

Electrical specifications: show hide

  • max. output of the photovoltaic panel: 118 W
  • battery capacity: 55 Ah
  • working temperature: -20°C - 60°C

Basic equipment: show hide

  • ambient lighting

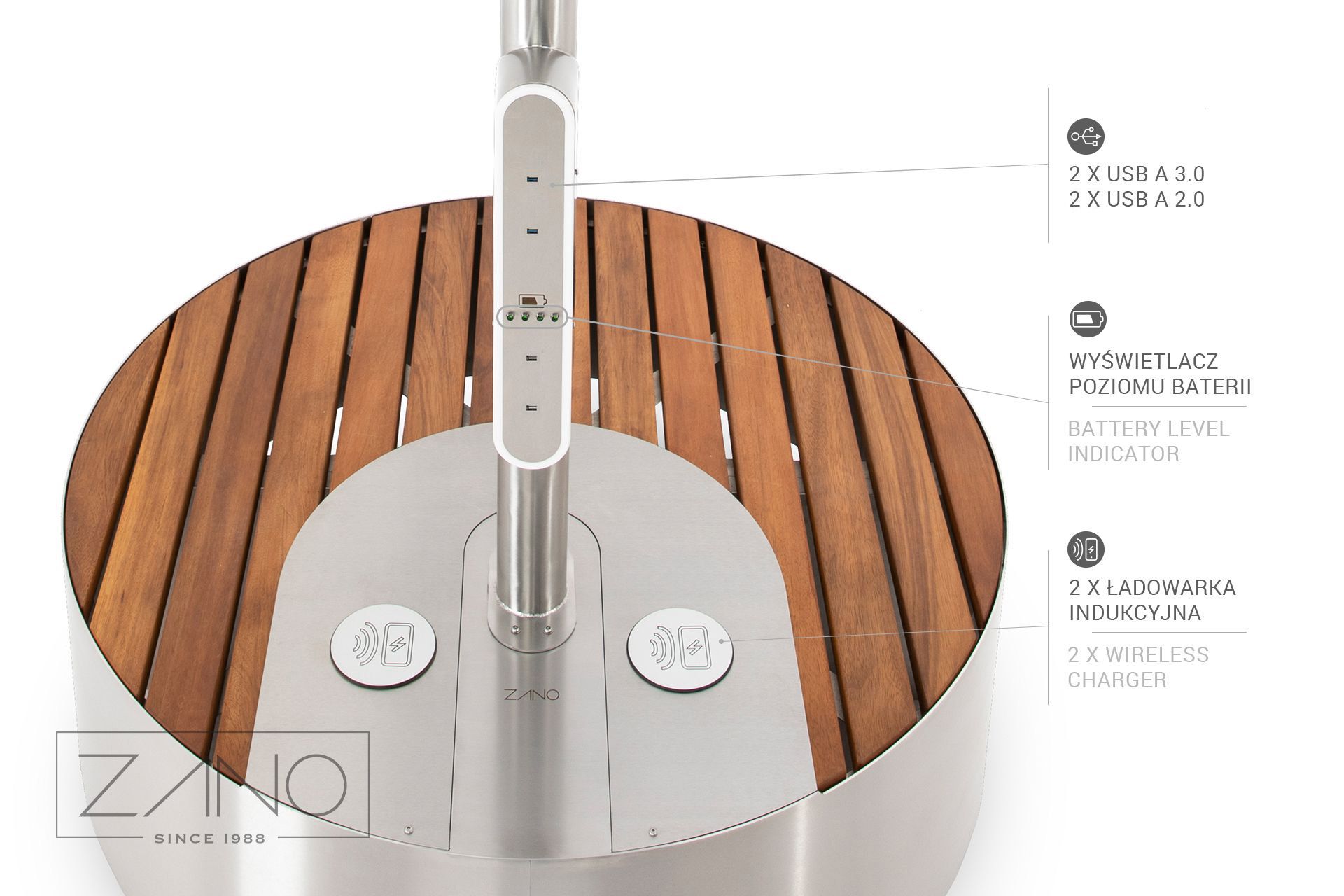

  • battery charge indicator

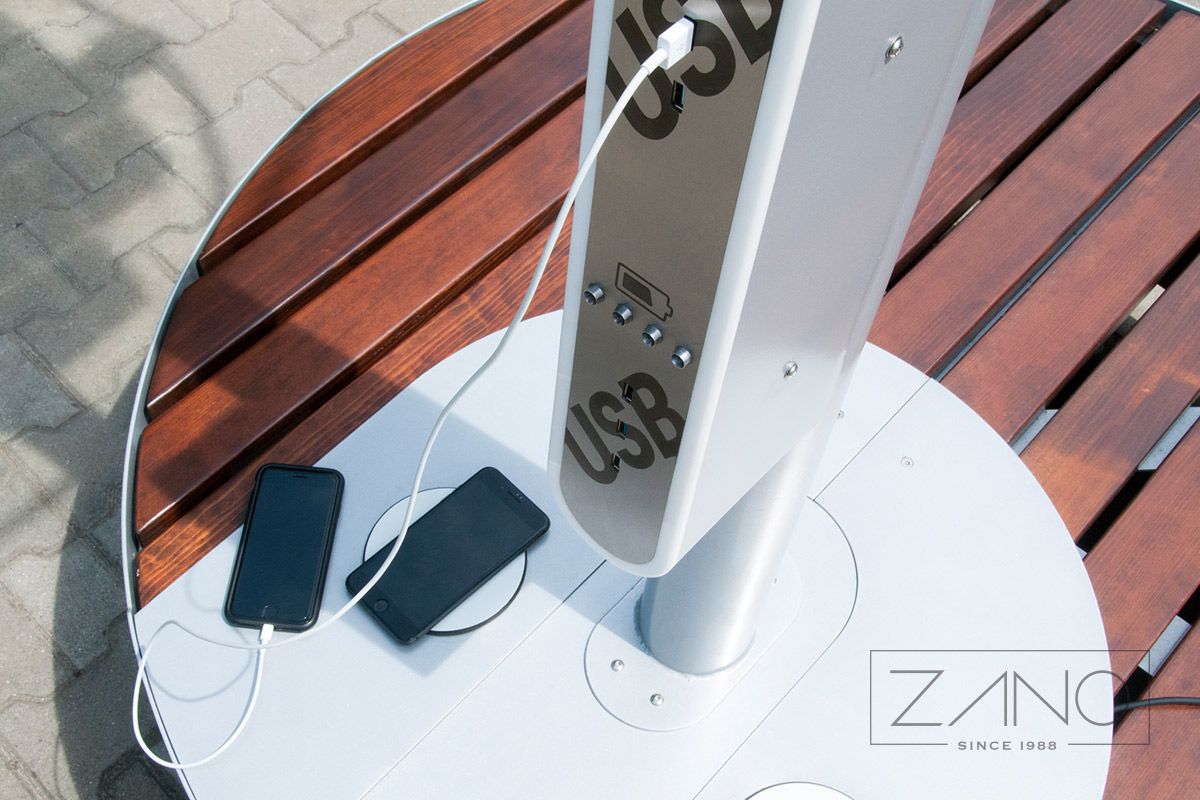

  • two inductive chargers

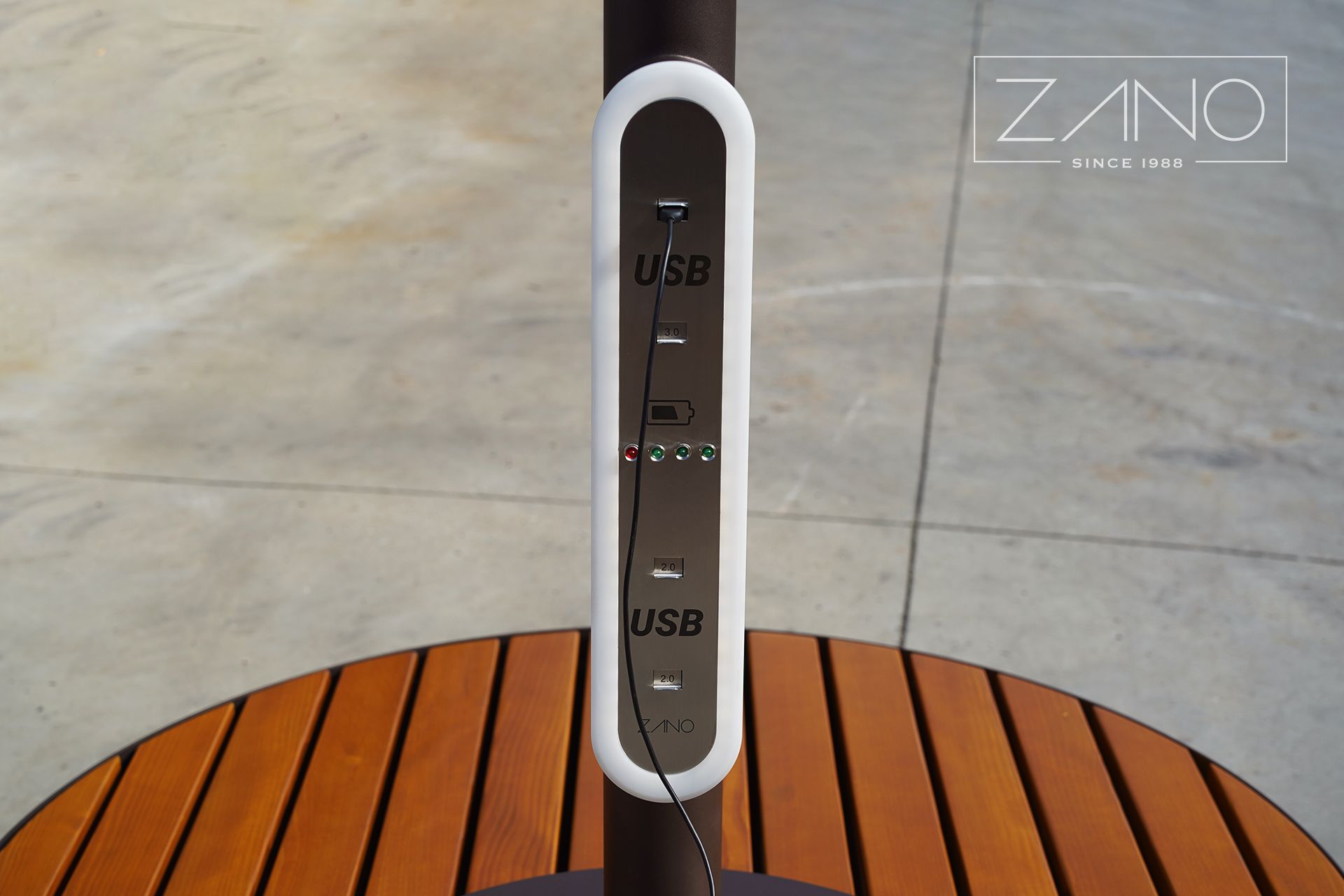

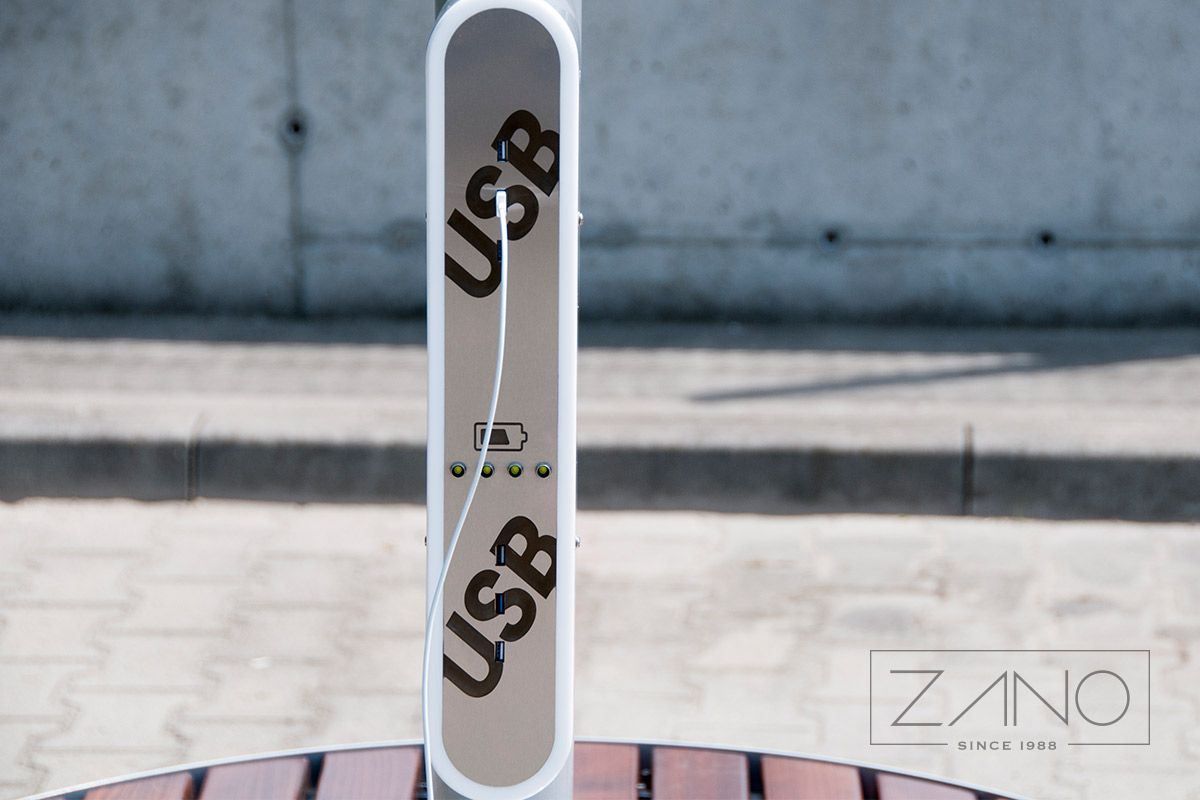

  • four USB A charging ports: 2 x 3.0, 2 x 2.0

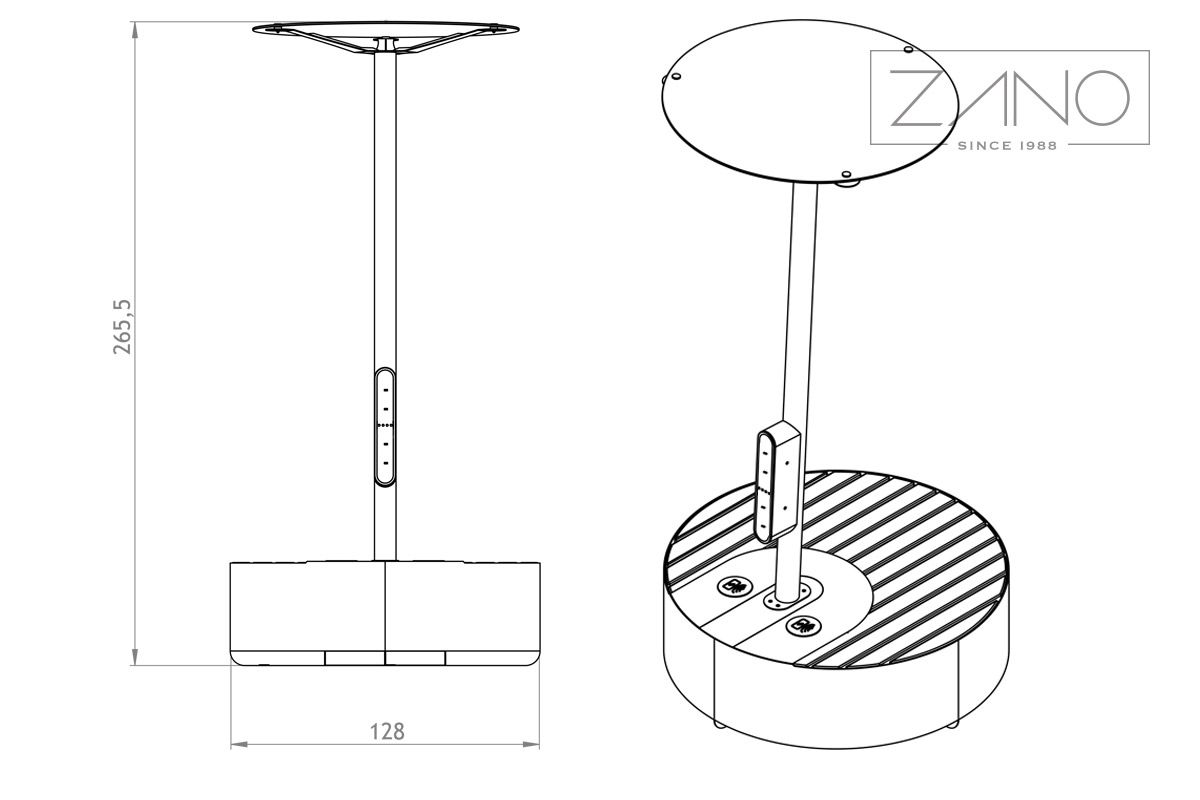

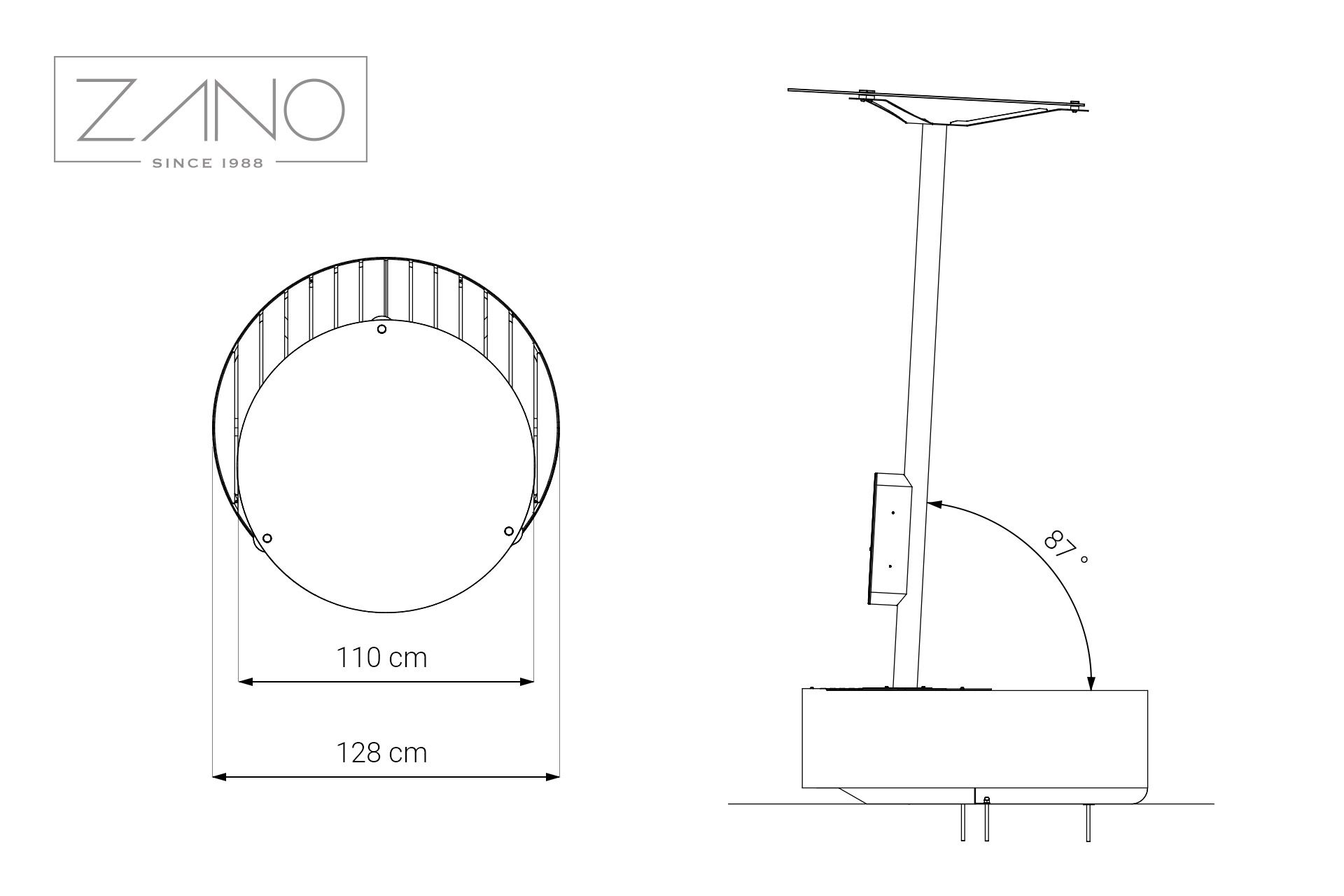

Dimensions: show hide

  • width: 128 cm
  • length: 128 cm
  • height: 267 cm
  • seat height: 42 cm

Weight: show hide

  • soft wood: 205 kg
  • hard wood (oil finish): 211 kg
  • premium hard wood: 214 kg

options show all hide all

Seat: show hide

  • soft wood
  • hard wood (oil finish)
  • premium hard wood

Methods of installation: show hide

  • attached by bolts to foundation

Additional bicycle rack: show hide

  • none
  • left side
  • right side

Sound module: show hide

  • none
  • bluetooth speaker
  • speaker with built-in memory

Battery pack: show hide

  • gel batteries 55 Ah
  • lithium batteries 40 Ah

Wi-Fi hotspot: show hide

  • none
  • 2.4 GHz; 3G, 4G (no SIM card included)

LED lights: show hide

  • 2 x 1m (4.8 W / 1m) - neutral white

Contact our representative in your country

Global
Designer

Original project: Filip Babiarz

All rights reserved.

Download files

DWG filesproduct card

Description of the model

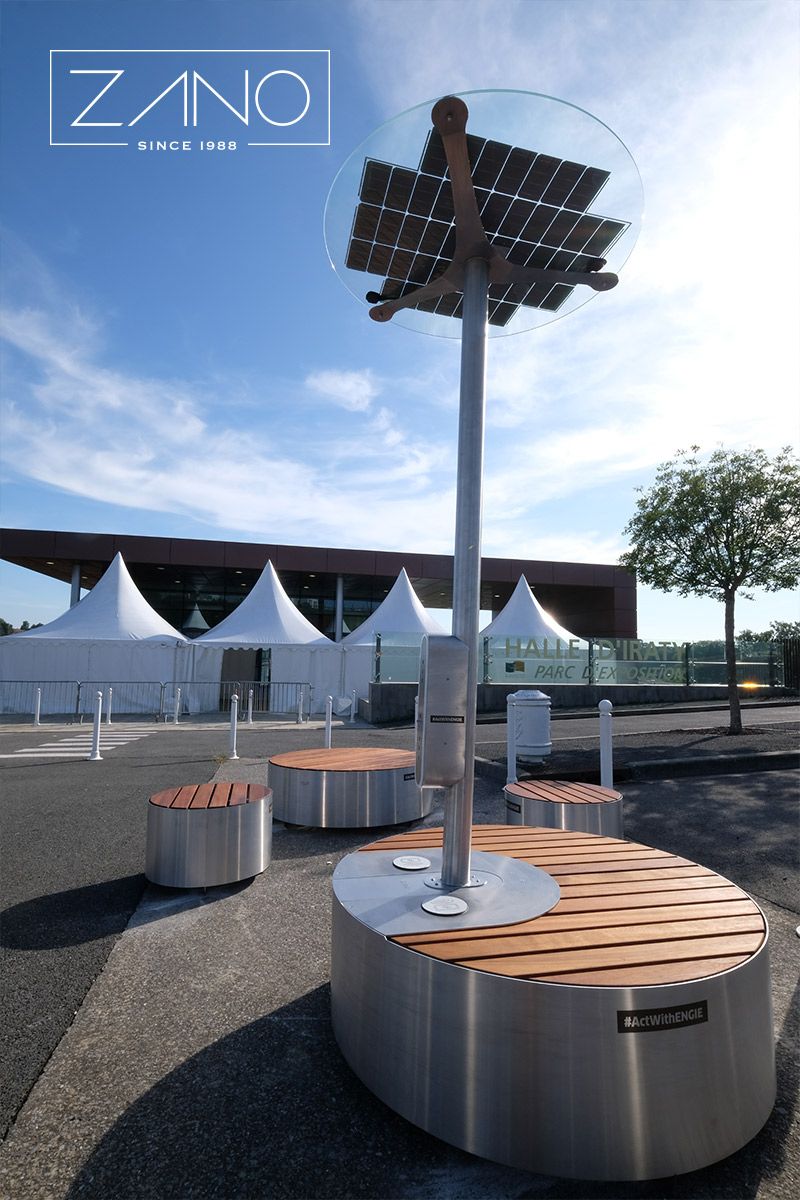

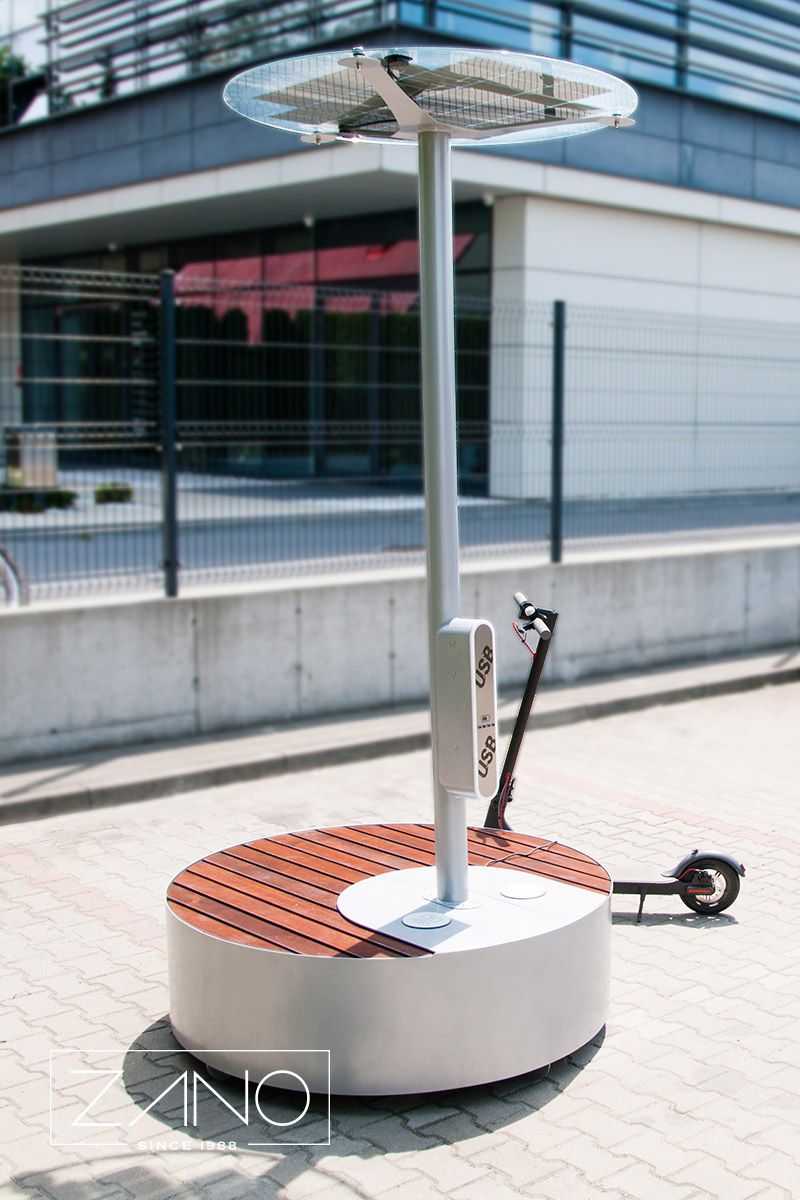

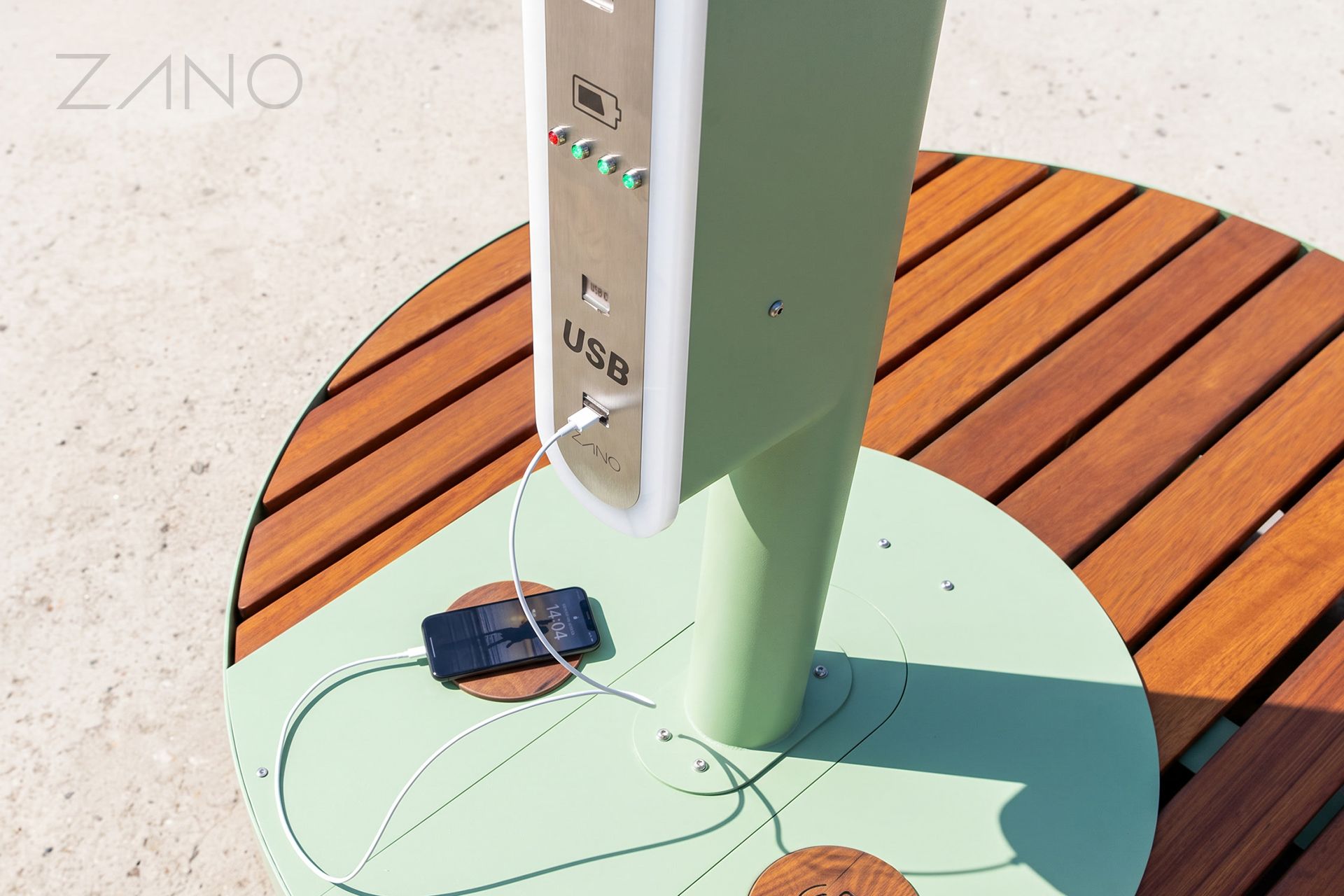

Solar charging station Universe, an extraordinary designed street furniture. It’s powered by a high-end, glass-glass photovoltaic panel mounted above the seat. The construction is made of carbon, galvanized and powder coated steel or stainless steel, finished with softwood or hardwood. As a standard Universe has six USB A ports supporting quick charge, two wireless chargers and LED lights which illuminate the main panel. As an option, it can be equipped with Wi-Fi hotspot, telemetry module, bluetooth speaker or music module with internal memory. Tracks are triggered by pressing the appropriate, vandal-proof button.


With other products from the Universe line, it’s easy to create new urban space which responds to the needs of a modern society.

Universe solar | ZANO Street Furniture

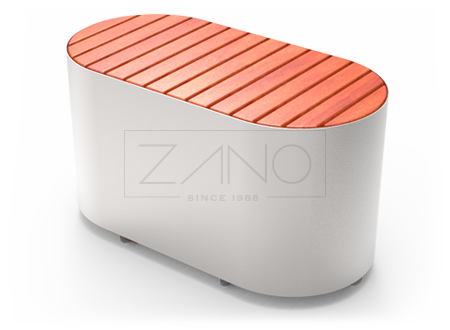

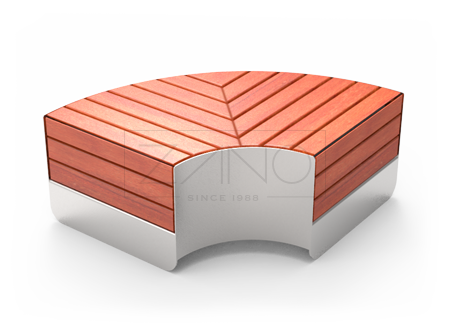

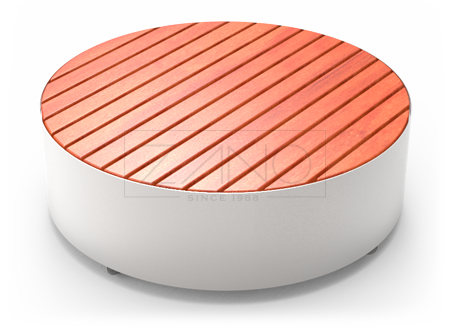

Below are the Universe benches, and the city's solar station. The station functions as both a bench and a free electricity and Wi-Fi point.

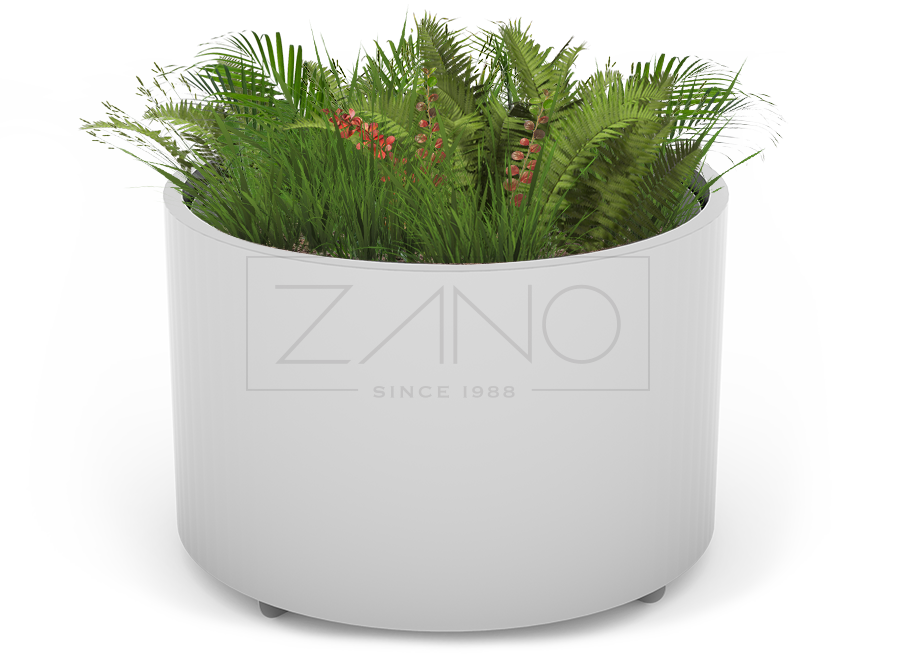

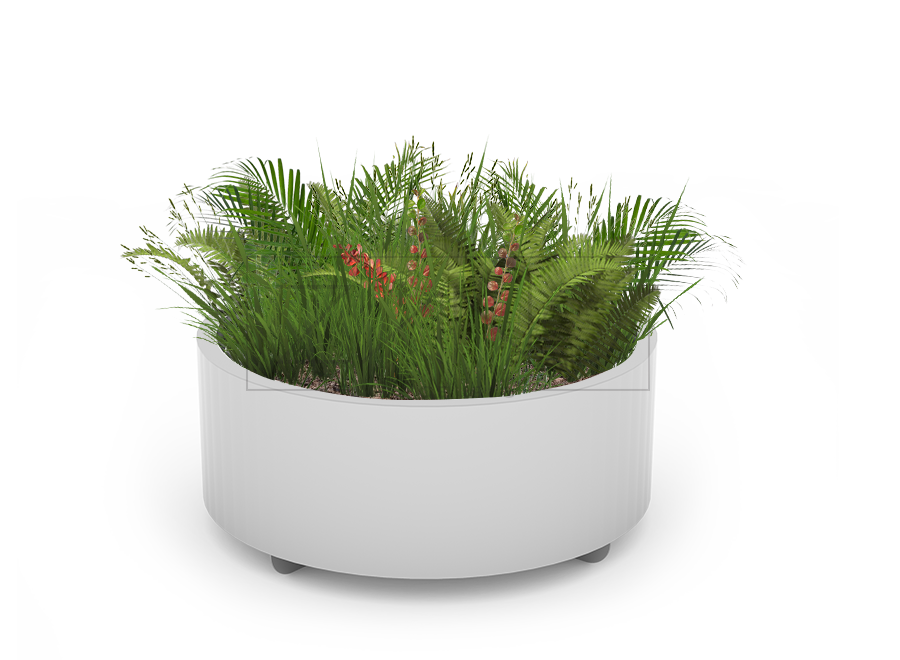

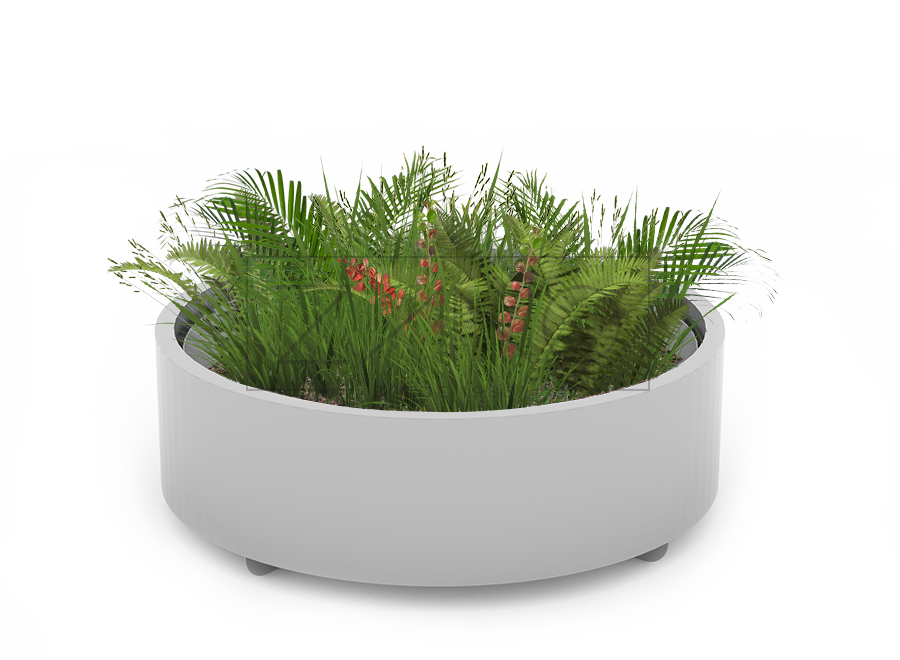

The Universe planters are available in four sizes, from S to XL. The bench and planter heights of the Universe line are the same, making them a great match.

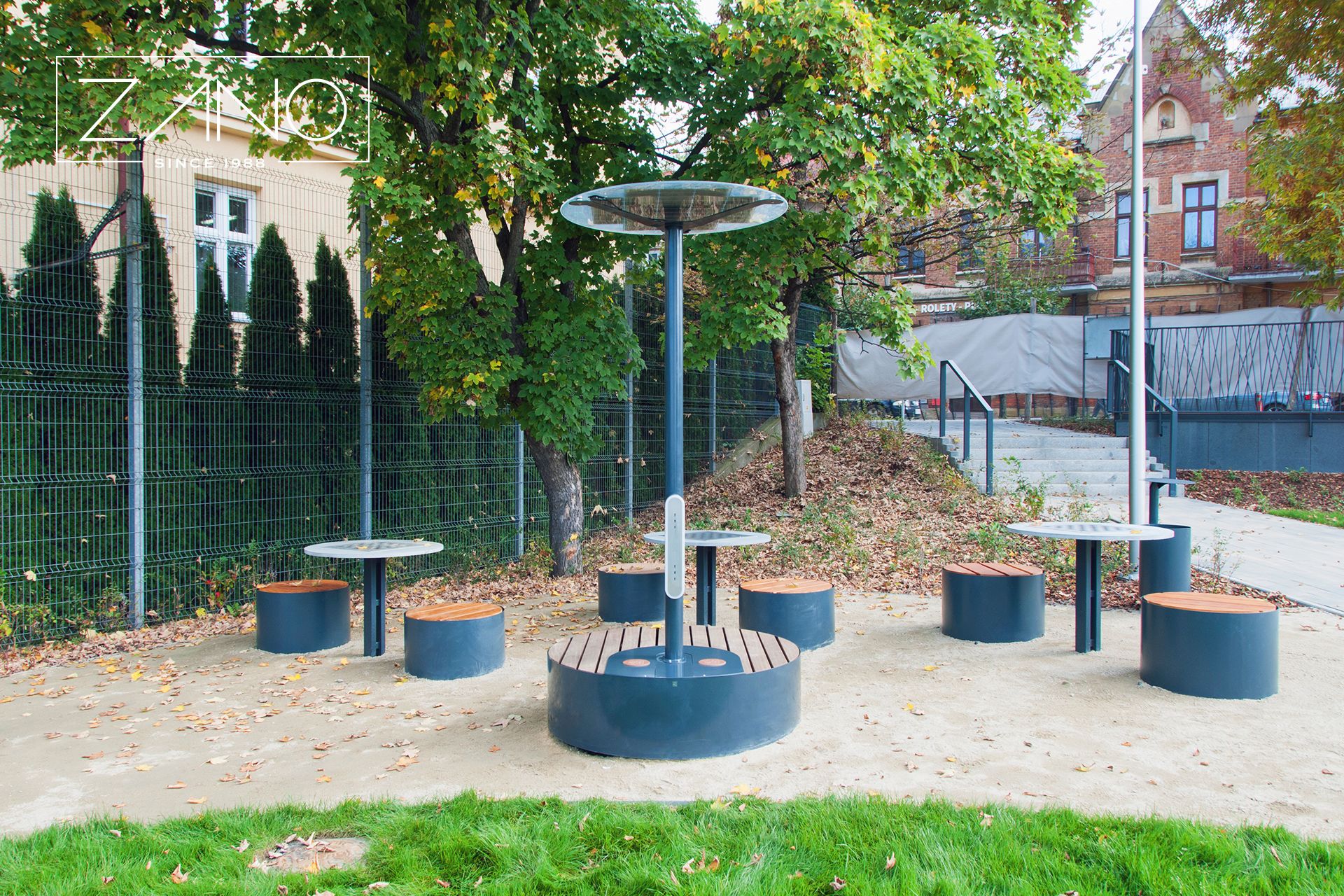

Examples of use

Each of the benches and seats can be combined
with each other in any compositions. Benches and seats
can also be found as free-standing objects.

Universe | City solar system | ZANO Street FurnitureZANO Street Furniture | Universe benches, tables and solar stationsUniverse 19.055 Solar StationUniverse 19.055 Solar Station

Universe line

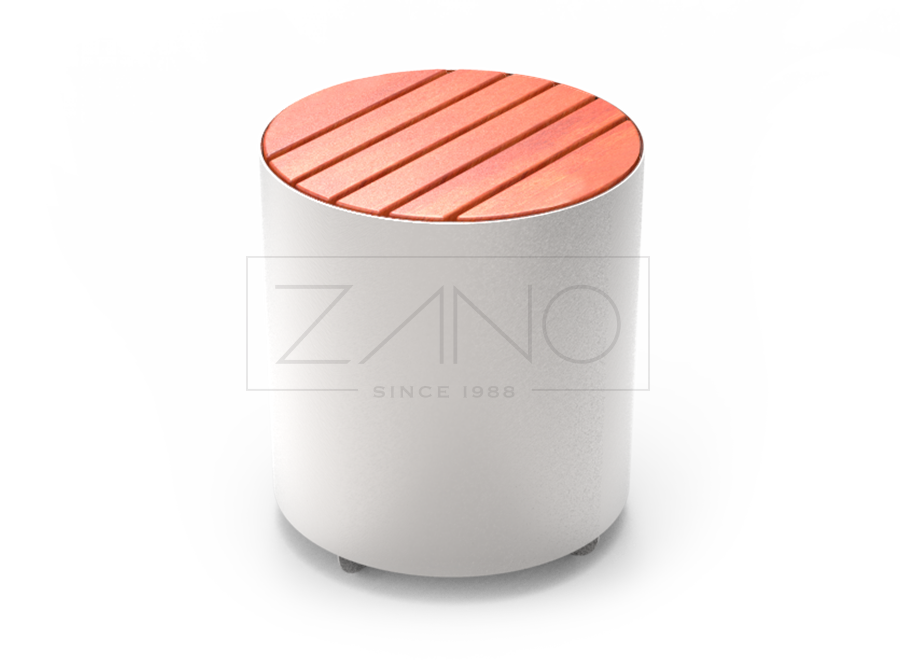

The Universe street furniture line includes benches, planters and a solar station. All furniture is made of steel. Their oval, minimalist shape fits perfectly into modern architecture and urban planning.

Our solar stations

ZANO solar stations are contemporary street furniture equipped with photovoltaic panels. Thanks to them the stations are an independent source of energy and lighting. The stations enable charging of mobile devices and provide the Internet.
