Kangu Bicycle repair station 18.004.2

Urban furniture with style

Kangu bicycle repair station with pump | stainless steel

Bike repair station with floor pump | carbon steel
Urban Self-Service Bicycle Repair Station

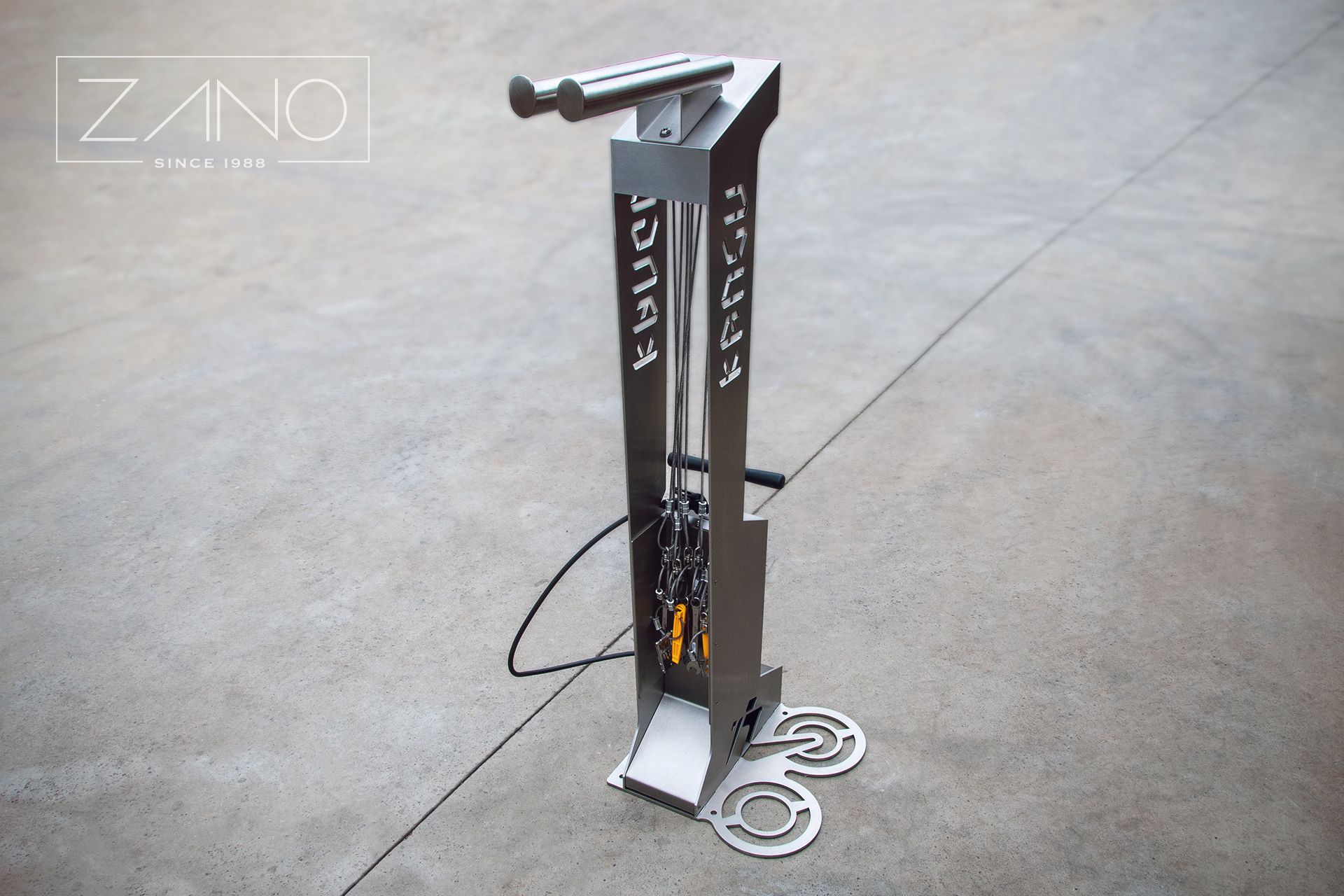

Kangu bike repair station with floor pump

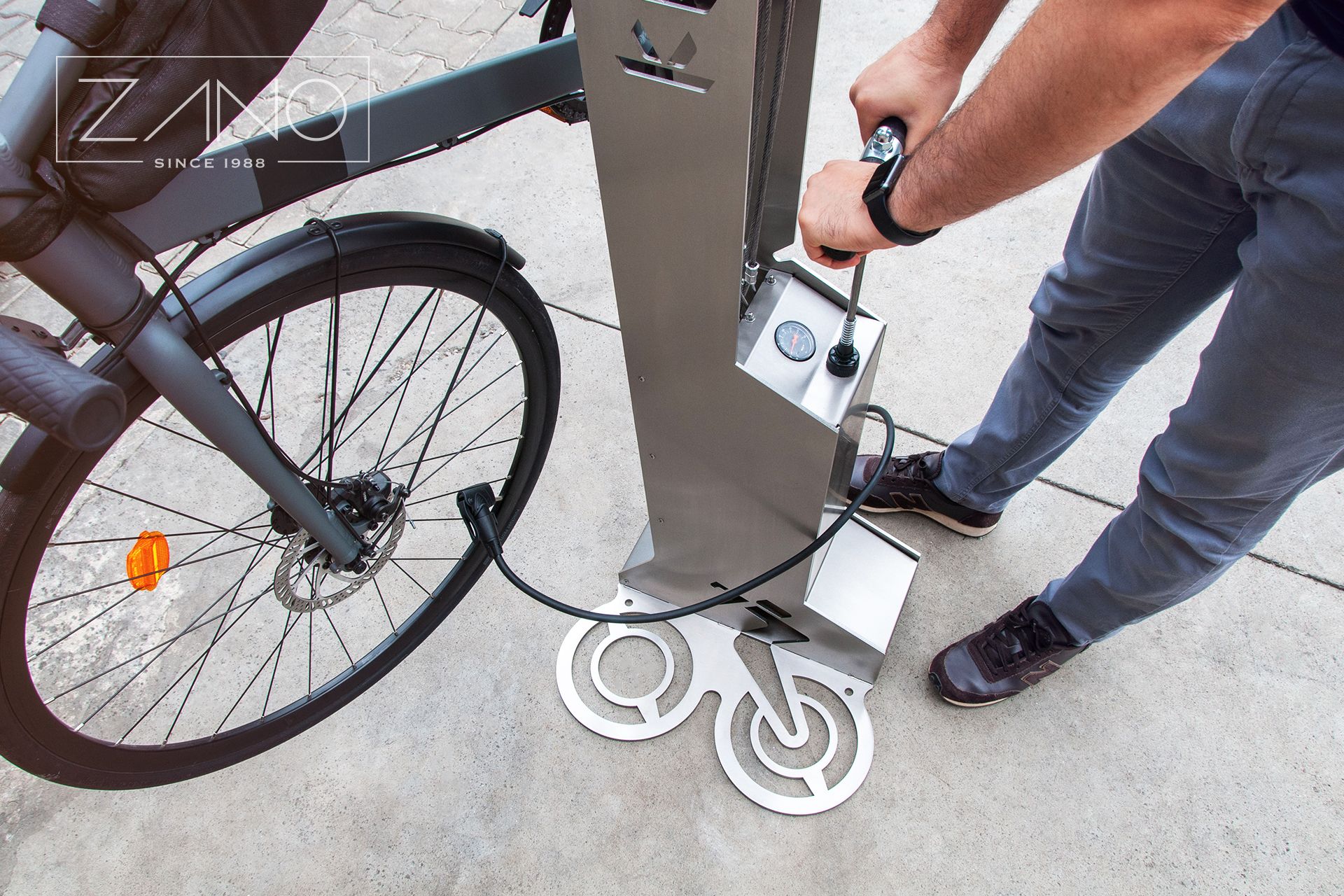

KANGU Bicycle repair station with floor pump

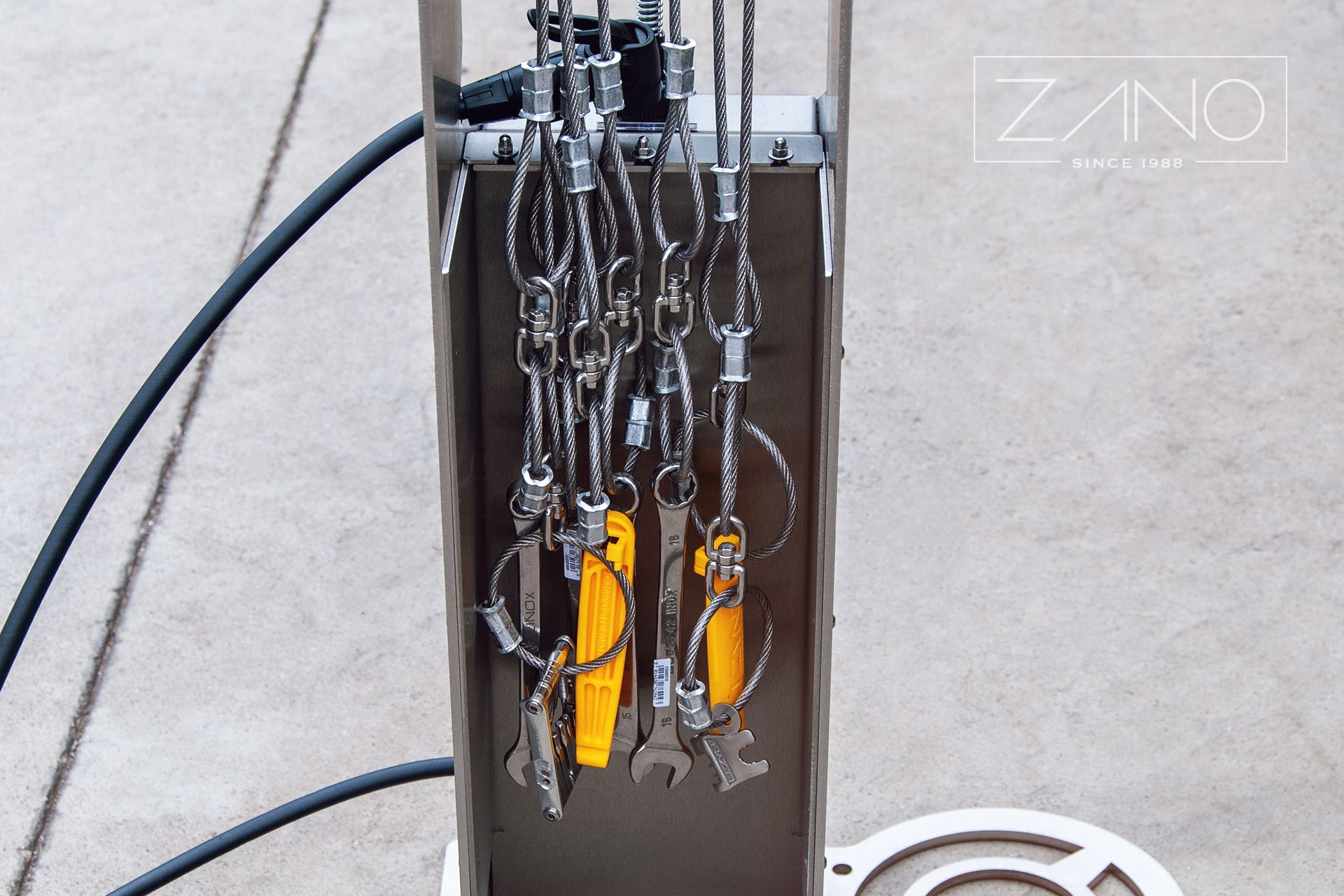

KANGU self-repair station for bicycles - tool kit

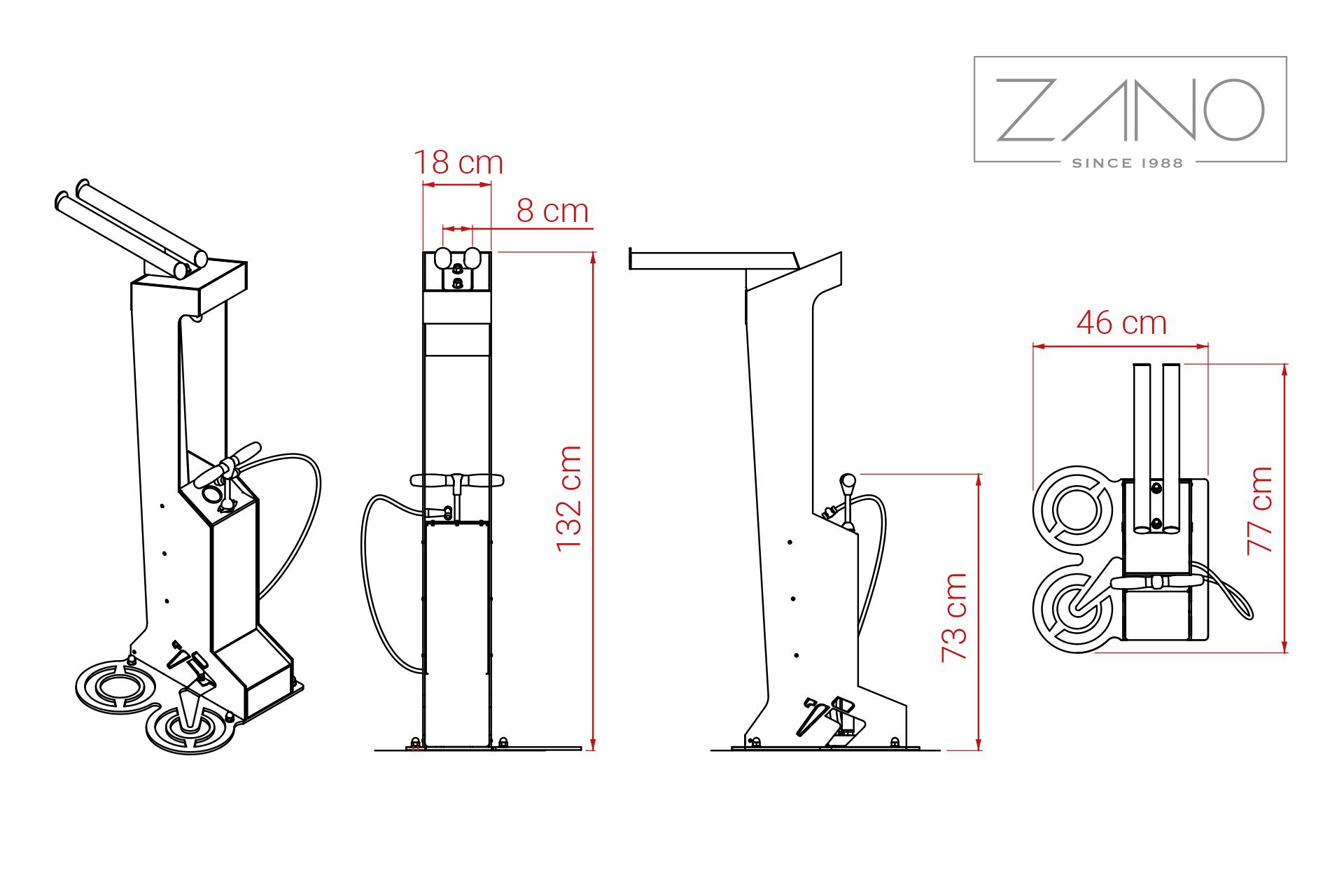

Dimension of Kangu station 18.004.2

specification Explore all Roll all

Dimensions: expand scroll down

  • width: 46 cm
  • height: 132 cm
  • depth: 77 cm

Weight: expand scroll down

  • 50 kg

Materials: expand scroll down

  • carbon steel (s235jr)
  • stainless steel (1.4301)

options Explore all Roll all

Construction: expand scroll down

  • carbon steel (s235Jr)
  • stainless steel (Aisi 304)

Methods of installation: expand scroll down

  • attached by bolts to foundation

Logo: expand scroll down

  • none
  • etching in stainless steel
  • cut in steel
  • sticker

available colours

Contact our representative in your country

Global
Designer

Original project: Filip Babiarz

All rights reserved.

KANGU station 18.004

Basic version of the station equipped with a bicycle holder and toolkit and a manual bicycle pump.

KANGU station 18.004.1

A version of the repair station with an additional bike stand.

KANGU station 18.004.2

Station for independent, ad-hoc repair and maintenance of bicycles, equipped with tool kit, bicycle rack and floor pump with pressure gauge.

KANGU station 18.004.3

The station for self-service, emergency repair and maintenance of bicycles is equipped with a bicycle rack, a rear bicycle stand, a floor pump with pressure gauge and a tool kit.

Bicycle inflator KANGU 18.104

The pump is a stand-alone floor-mounted product. It is equipped with a manometer and a head suitable for Presta and Schrader valves.

KANGU 18.004.4station

Model 18.004.4 is a bike station designed for washing unicycles. It is equipped with a low-pressure washer, a tap with timer and a set of brushes.

KANGU station 18.004.5

The 18.004.5 station is a combination repair and washing station for bicycles. It is equipped with both a tool kit and a hand pump, as well as a brush set and a low-pressure washer. In addition, the station has a stand for two bicycles.

Bike stand KANGU 05.004

The stand completes the KANGU line of bicycle stations. It features a distinctive cyclist motif, cut out at the base of the stand and each station.

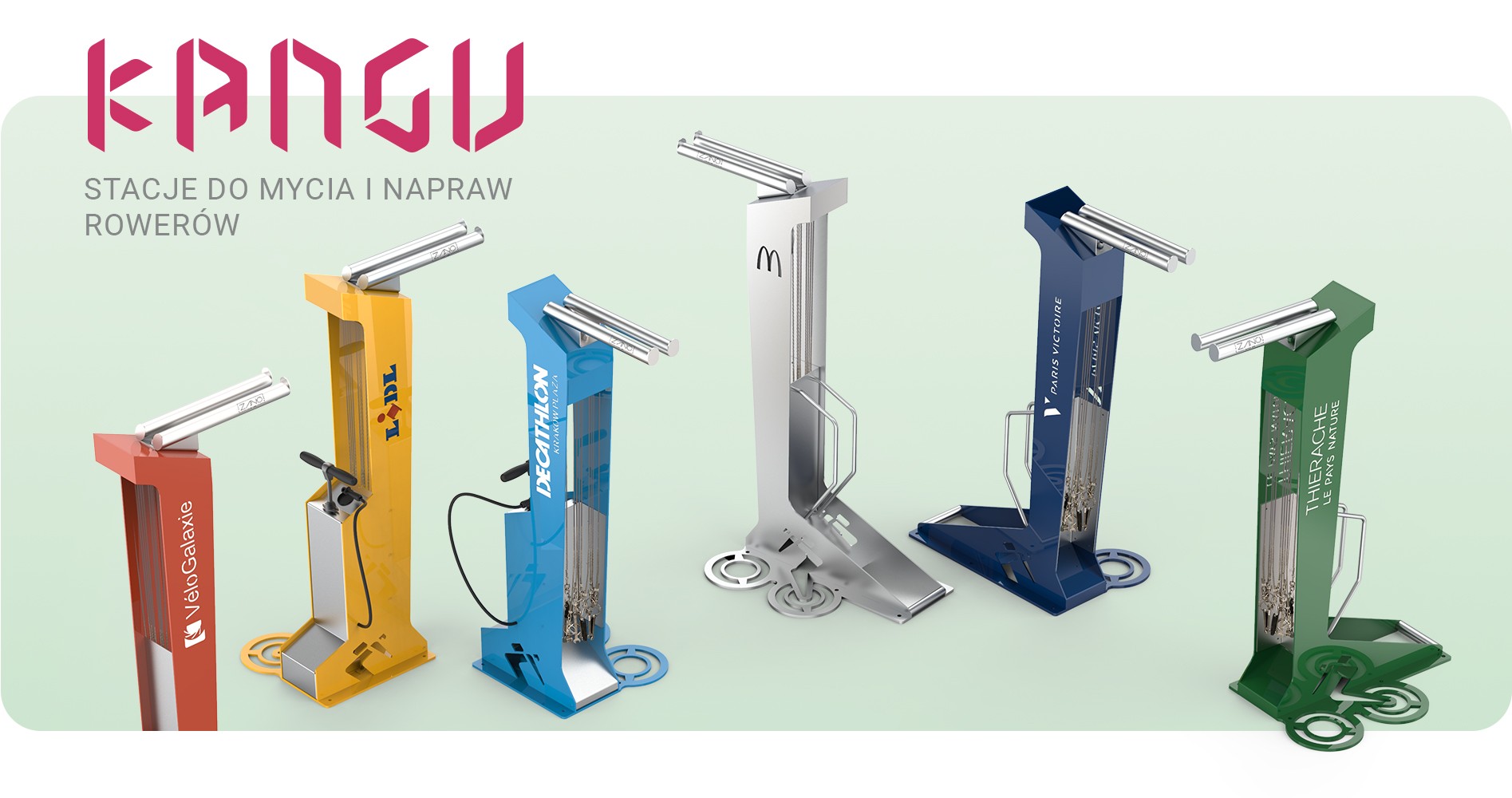

KANGU series products

A collective presentation of all the bicycle stations and dadoes from the KANGU series.

Realisations

We can customise each station by adding a logo and painting it in the colour of your choice. For painted stations, the logo can be cut into the metal structure or glued on. For stations made entirely of stainless steel, the logo can be cut out, etched in black on the surface of the steel or pasted.

Repair stations for bikes with your logoKangu bicycle repair station with customised logoKang station with personalised logoStation with tools for bike repairMcDonald - bicycle repair station by ZANO Street FurnitureKANGU bicycle repair station with tools

Model description

The KANGU self-service bicycle repair station is designed for ad hoc repair and adjustment of bicycles by the user himself, using the construction of the station as a base and tools included in the equipment.

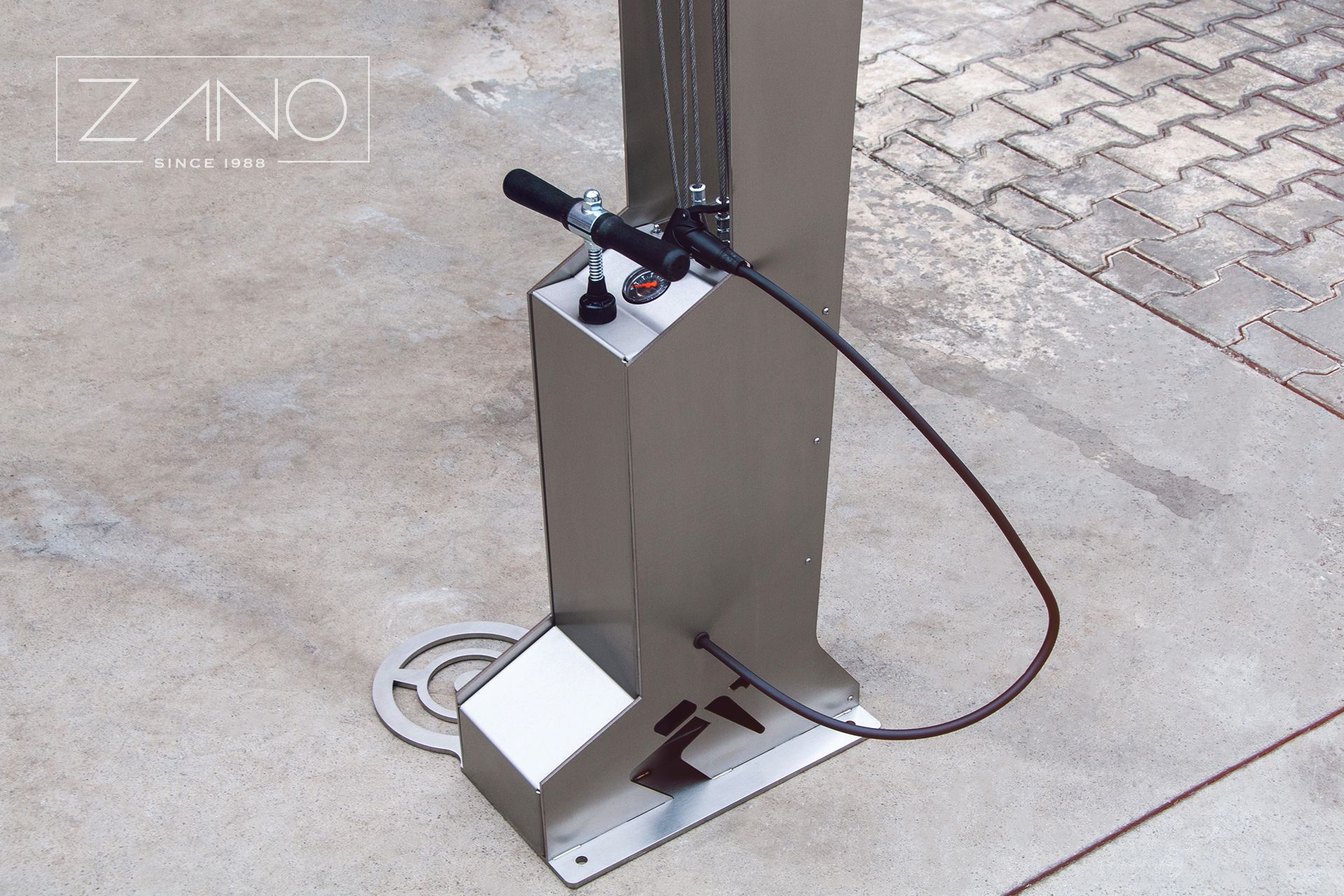

Model 18.004.2 is characterised by an integrated floor pump with a manometer.

The welded structure made of 5 mm thick steel sheets ensures the stability and durability of the product.

KANGU can be made in two variants:
● from carbon steel s235Jr galvanised and powder-coated in a colour chosen by the customer from the RAL palette with stainless steel elements
● or entirely made of stainless steel 1.4301 ground.

Station equipment:
● handlebars made of two stainless steel tubes, diameter 42 x 2.6 mm, length 450 mm to hang the bicycle.
● tools, attached to stainless steel cables (8 mm diameter) in PVC sheath. They are attached to the cables with steel swivels to prevent tools tangling.

Tools included:
● floor pump with pressure gauge; compatible with Presta and Schreder valves
● screwdriver; stainless steel Phillips and flathead
● open-end spanners; stainless steel; 13, 14, 15, 16 mm
● allen spanners; stainless steel; 2, 2.5, 3, 4, 5, 6, 8 mm
● ● chain reducer; 9, 10, 11 speed (supports Shimano 11 speed SPD, does not support Campagnolo 11 speed chains!); stainless steel
● spoke (nipple) spanner; Mavic MTB, 3.22, 3.45 and CNSPOKE spanner (3.2-3.3-3.4 mm); stainless steel
● T10, T25, T30 star spanner; stainless steel
● 8 mm disc brake wedge + bottle opener; stainless steel
● tyre spoons; suitable for removing tubeless tyres and high-strength plastic wire tyres

The Kangu Station should be fixed to the ground permanently with dowels.

The Kangu Station can be personalised by having the customer's logo, company name, etc. cut into the station structure..
