Flat Bicycle Rack 05.025

- Technical data

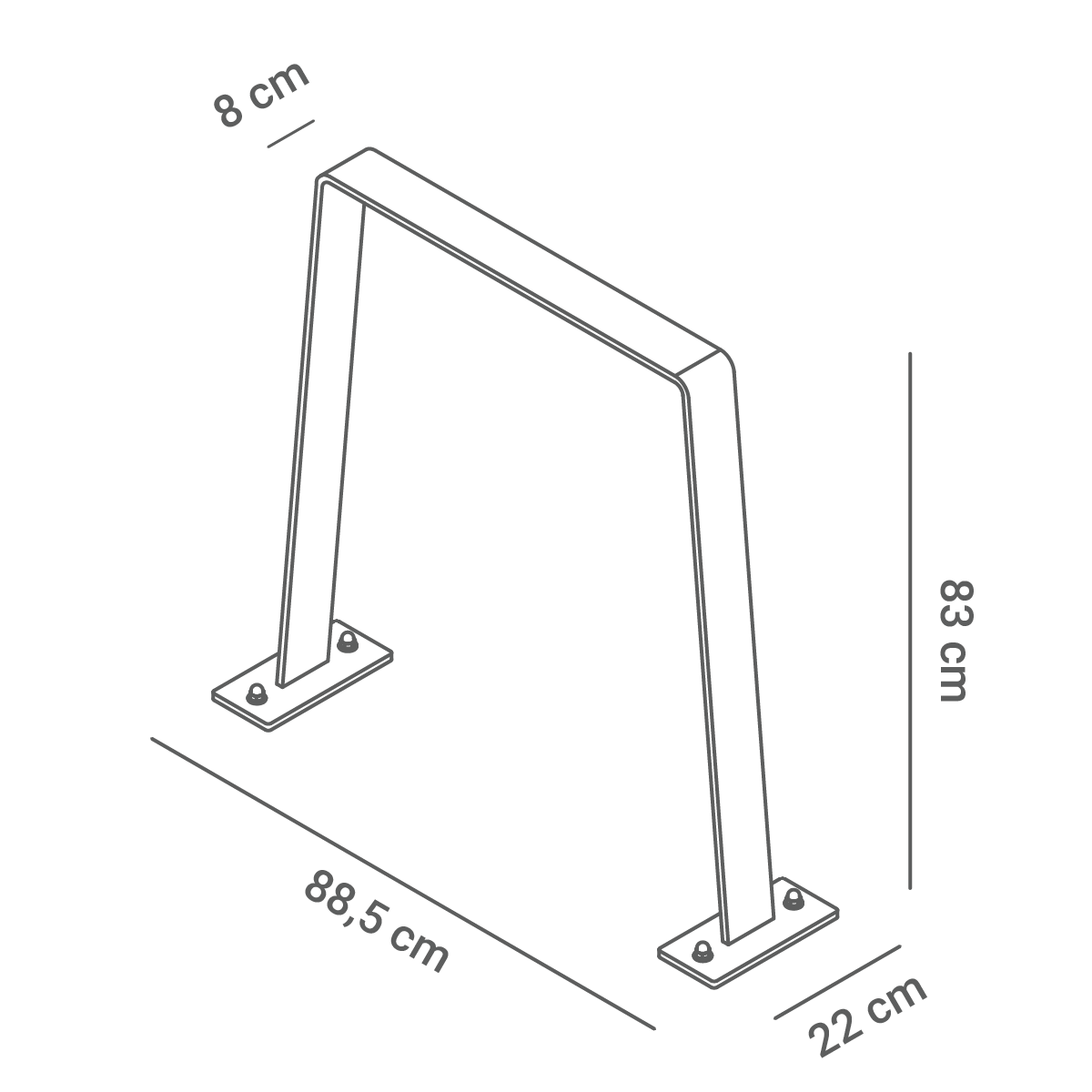

- Dimensions:
- width: 8 cm
- depth: 80 cm
- height from ground surface: 83 cm
- height with anchoring section: 121 cm
- base width: 22 cm
- depth with mounting orifice: 89 cm
- Weight:
- 17 kg
- Materials:
- stainless steel - steel flat bar 80x8mm or carbon steel - steel flat bar 80x10mm
- Dimensions:
- Options
- Construction:
- carbon steel (s235Jr)
- stainless steel (Aisi 304)
- Methods of installation:
- embedded in concrete
- attached by bolts to foundation
- Construction:
- Finishing options
- Dimensions
- Downloads
- Description
The minimalist form and classic design of this product makes the Flat 05.025 bicycle stand suitable for any public place with a need for bicycle parking.
The presented bicycle stand is manufactured from a metal flat or flat bar made of stainless steel.
The product is very ergonomic, so that attaching and detaching the bicycle does not cause any difficulties. The stand is assembled by concreting into the ground.
