Photon solar bench 02.009.3

Street Furniture with style.

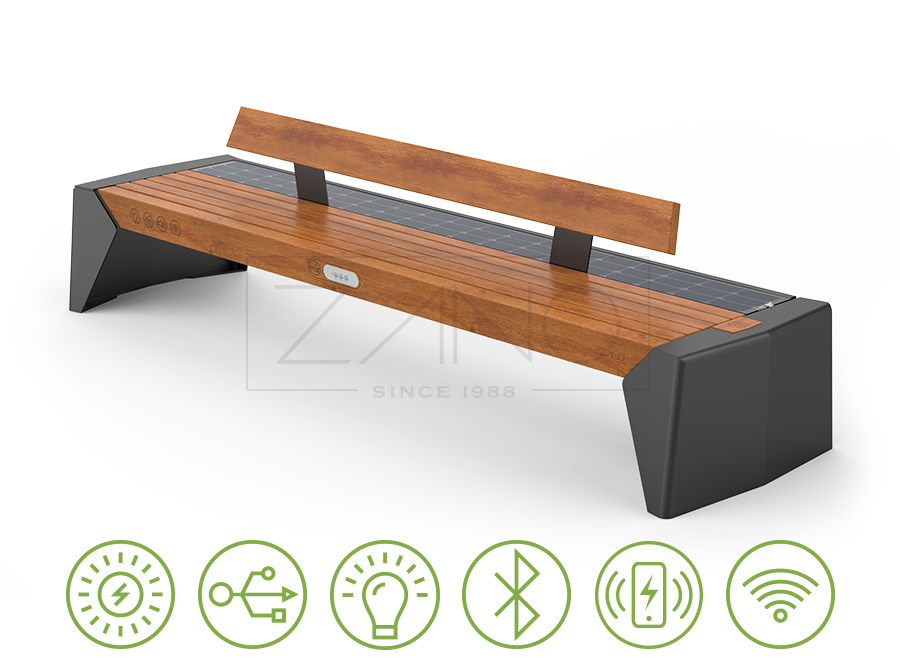

Photon solar bench 02.009.3 | carbon steel

Photon solar bench 02.009.3 | stainless steel

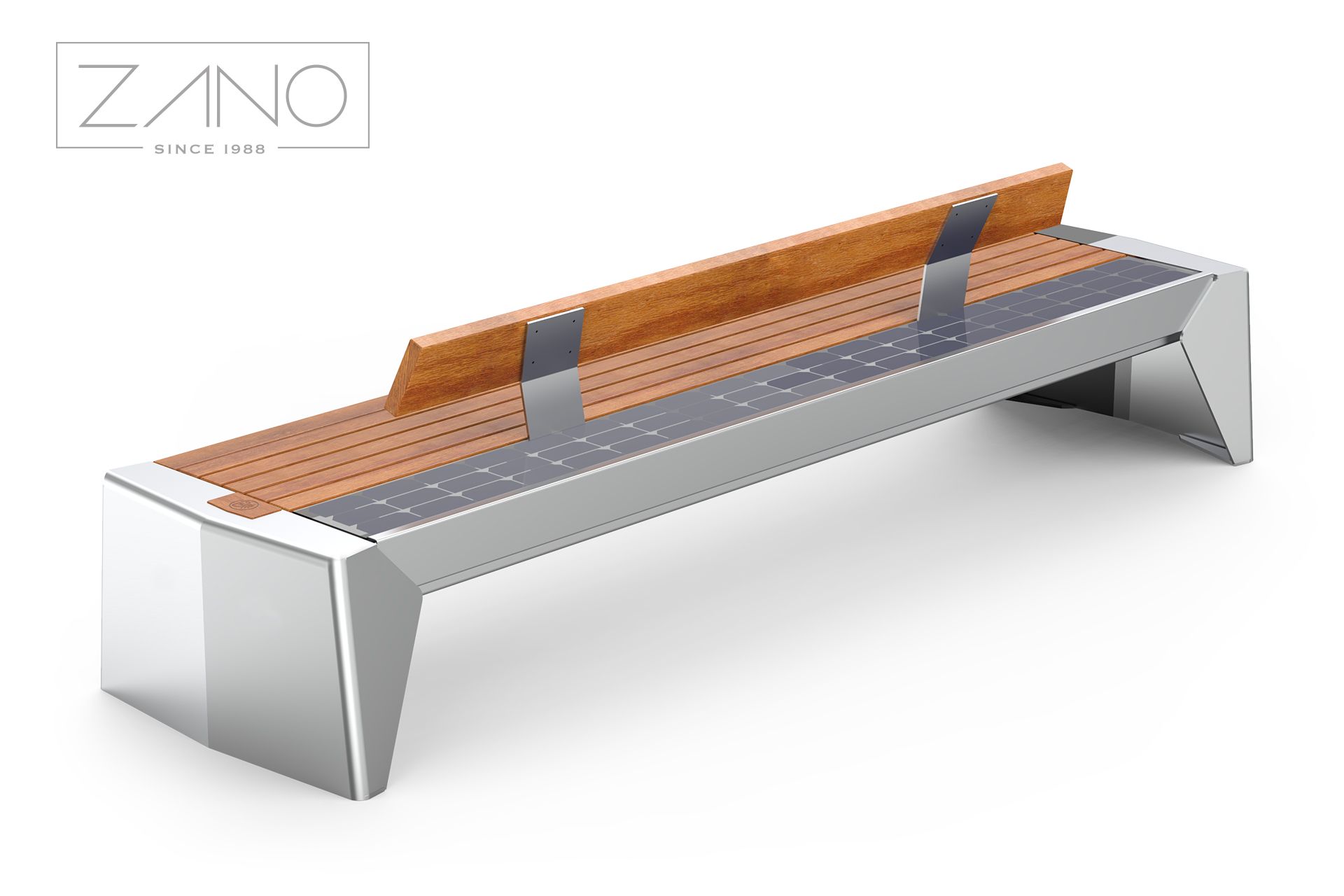

Bench with photovoltaic panel and wooden seat

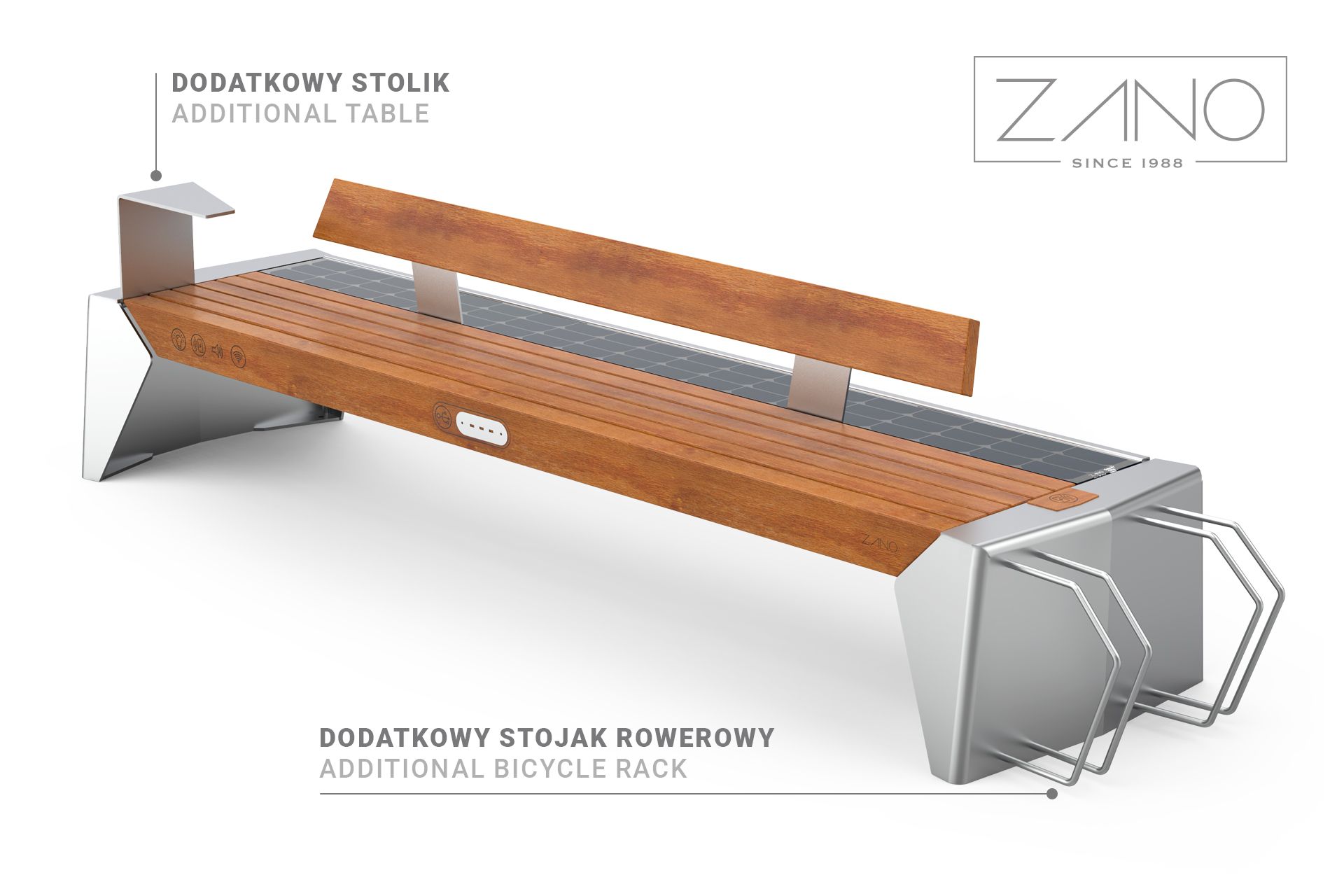

Photon solar bench 02.009.3 | additional table and bicycle stand

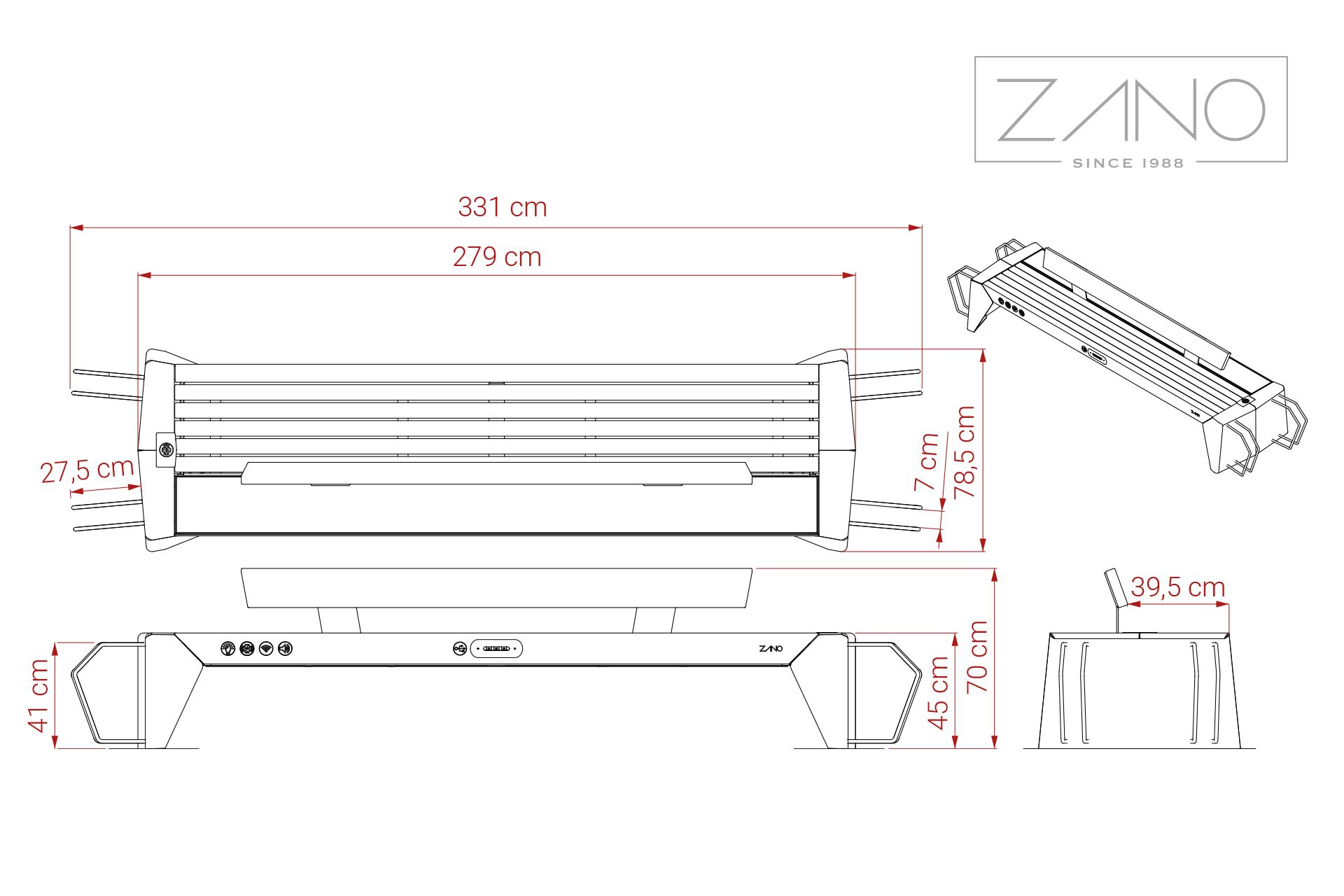

Photon solar bench 02.009.3 | dimensions

specification show all hide all

Materials: show hide

  • European coniferous or exotic wood
  • construction - stainless steel or carbon steel, galvanised and powder coated

Dimensions: show hide

  • width: 279 cm
  • height: 70 cm
  • depth: 78 cm

Basic equipment: show hide

  • ambient lighting
  • three USB A quick charge ports

Electrical specifications: show hide

  • battery capacity: 36 Ah
  • working temperature: -20°C - 60°C
  • max. output of photovoltaic panels: 100 W

Weight: show hide

  • soft wood: 189 kg
  • hard wood (oil finish): 205 kg
  • premium hard wood: 0 kg

options show all hide all

Seat and backrest: show hide

  • soft wood
  • hard wood (oil finish)
  • premium hard wood

Methods of installation: show hide

  • attached by bolts to foundation

Additional table: show hide

  • none
  • left side

Additional bicycle rack: show hide

  • none
  • left side
  • right side
  • both sides

Sound module: show hide

  • none
  • bluetooth speaker
  • speaker with built-in memory

Wireless charger: show hide

  • none
  • 2 A, 10 W

Battery pack: show hide

  • gel batteries 36 Ah
  • lithium batteries 40 Ah

Wi-Fi hotspot: show hide

  • none
  • 2.4 GHz; 3G, 4G (no SIM card included)

LED lights: show hide

  • 2 x 1m (4.8 W / 1m) - neutral white

Logo: show hide

  • none
  • etching in stainless steel
  • milled in wood

Contact our representative in your country


Original project: Filip Babiarz

All rights reserved.

FAQSprawdź odpowiedzi na najczęściej zadawane pytania

Download files

brochureproduct card

Description of the model

The Photon solar bench is an innovative piece of urban furniture that is fully autonomous thanks to solar power. Photovoltaic panels with a total output of 100 W allow solar energy to be collected and stored in 36 Ah gel batteries. This allows the bench to operate independently of the electricity grid.

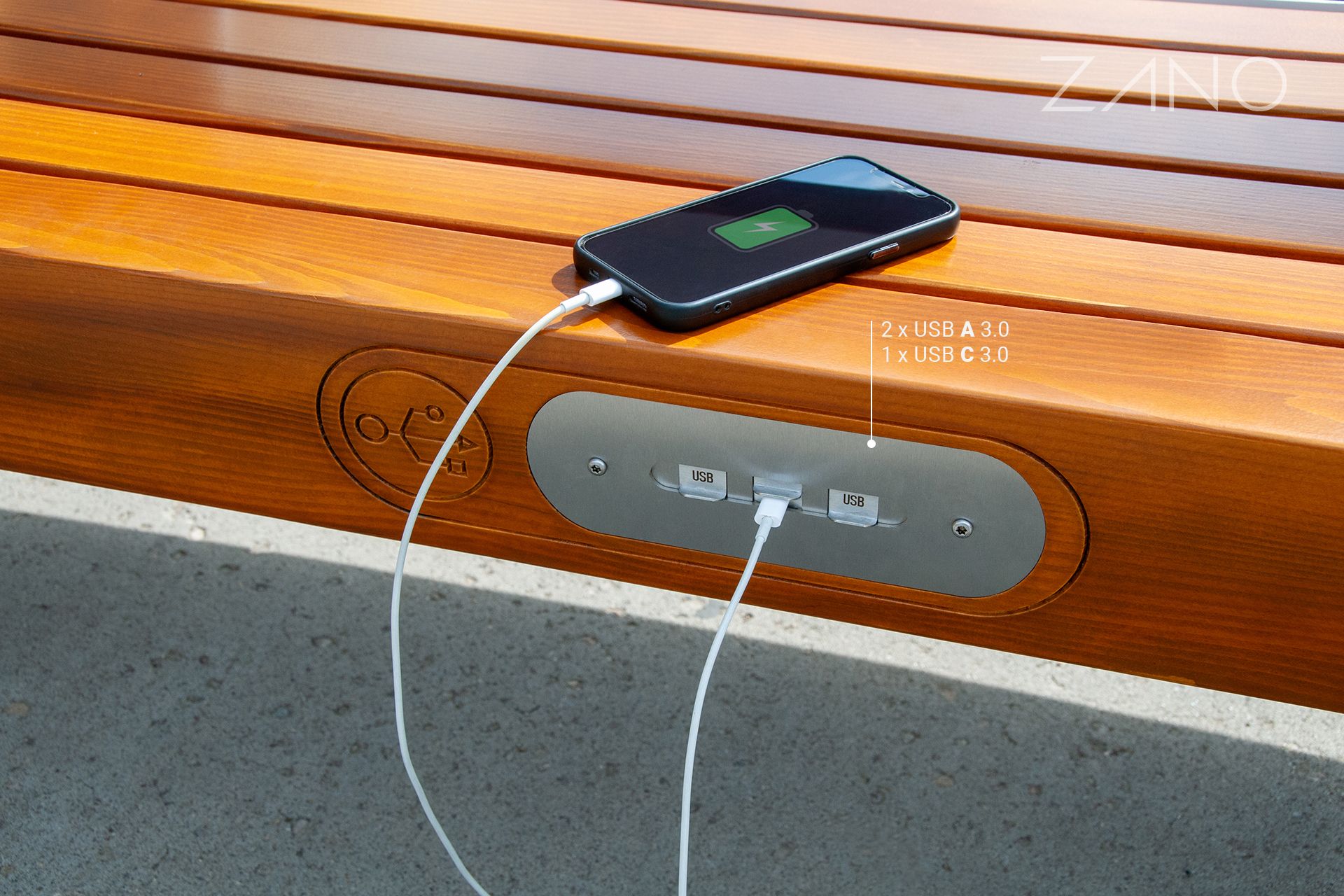

Standard equipment on the Photon bench includes LED lighting, which automatically lights up after dark to provide illumination around the bench. In addition, the bench is equipped with three USB Type A charging ports to charge mobile devices.

In addition, you can choose accessories such as an inductive charger, Wi-Fi hotspot module, music module (bluetooth speaker or speaker with built-in memory and playable songs). You can also choose 40 Ah lithium batteries for greater energy efficiency. Further options include an additional table on the left side of the bench and double bike racks.

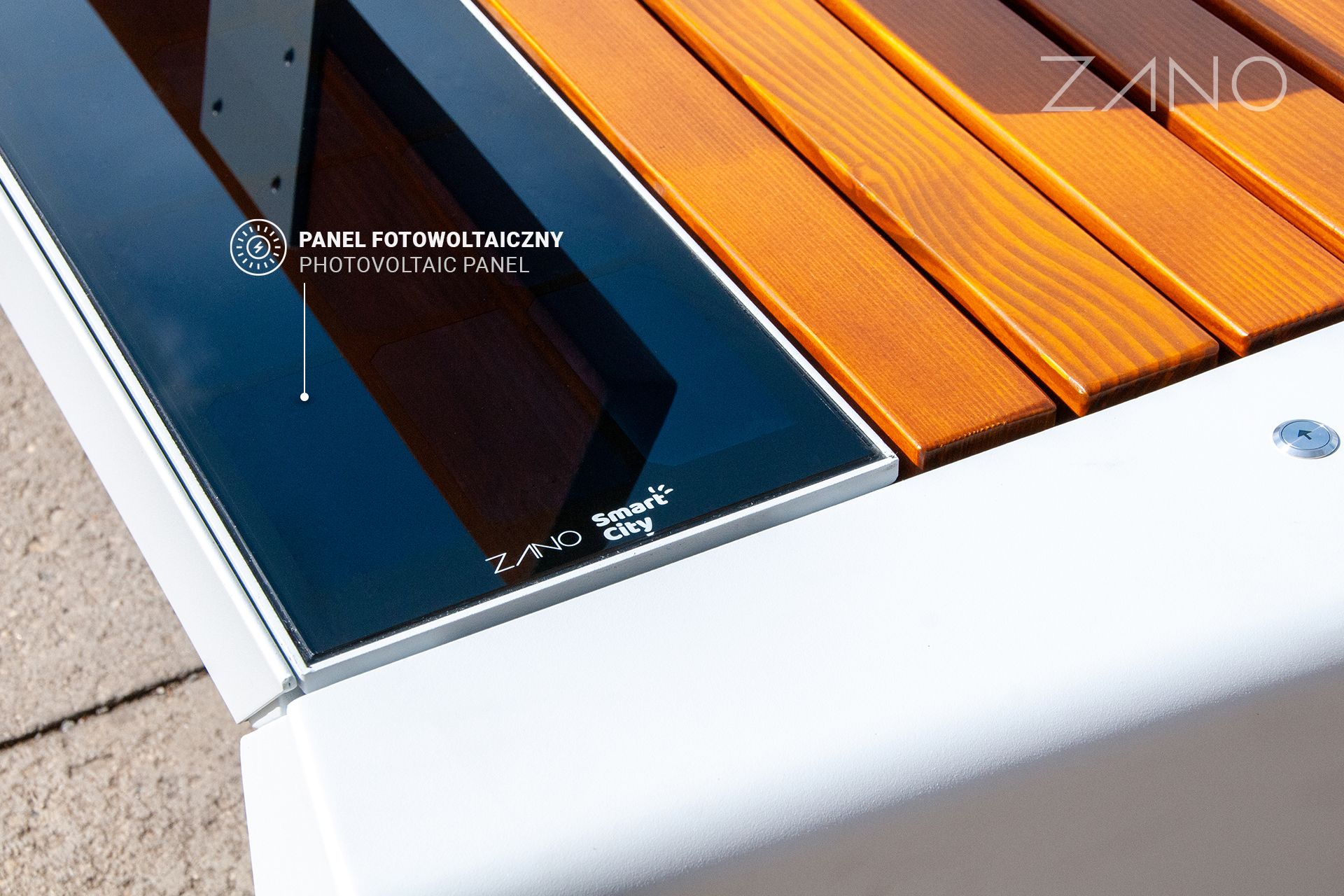

The bench structure is made of bent and welded steel sheets and wooden planks. The photovoltaic panels are protected by a double sheet of toughened glass. Customers can choose construction materials such as galvanised carbon steel and powder coated in the chosen RALor polished stainless steel. The wooden components can be made of softwood, coniferous wood of European origin or exotic hardwood.

The Photon bench can be combined with other products from the Photon range, such as benches, waste baskets and planters. Often designers and architects choose to juxtapose the Photon bench with products from the Flash and Universe lines to create a coherent and aesthetically pleasing look for urban spaces.

Photon series of street furniture by ZANO

Photon Line

Photon street furniture line includes: city benches, smart benches connected to the external power grid, smart solar benches, waste bins, recycling bins and city pots. Perfect for gardens, parks, streets, promenades and interiors. Furniture is made of carbon, galvanized and powder coated steel or stainless steel. Wooden elements are made of lacquered wood (spruce, pine) or oiled exotic wood (tauari, meranti, sapphire).

Additional options

Each Photon bench can be extended by a bicycle rack as well as small tables and backrest.

Photon solar bench with backrest

Photon benches are available in three basic variants: standard bench, on-grid bench or solar off-grid bench. Additionally, benches can be equipped with small tables, bicycle racks and backrests.

Smart solar bench Photon 03.009 and outdoor city planter 06.009 Photon

Photon planters are available in two sizes: M and L. The walls of the L planter are the same size as the legs of the Photon bench.

Realizations of benches Photon

Smart solar bench Photon

the product representing the photon lines is the photon solar bench. This is a bench belonging to the Smart City products.

Equipment of the Photon solar bench

Photon solar bench is available in two versions: with and without backrest.

Photos of solar bench Photon

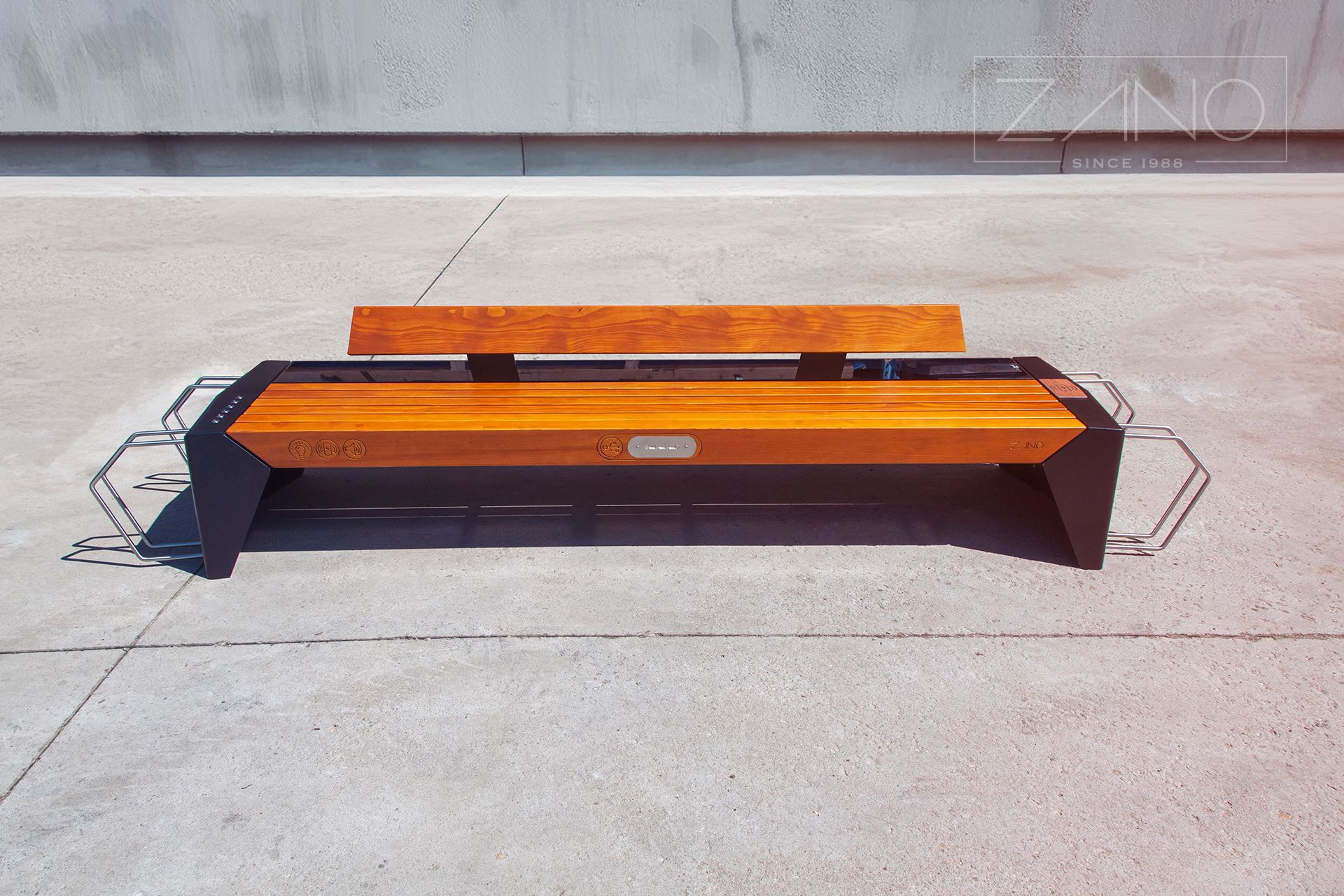

Photon solar bench without backrest made of stainless steel, finished with hardwood (Iroko wood, teak oiled). The bench has three USB A ports, wireless charger and built-in Wi-Fi hotspot.

Photos of solar bench Photon

Photon solar bench made of galvanized and powder coated carbon steel. Additional customization made on the backrest.

Smar solar benches in Cracow, PolandSmart bench for smart city!Renewable energy in modern public bench by solar panelsCustomize your order | ZANO Street Furniture

Photon solar bench photos

Below are photos of the Photon 02.009 bench with a milled logo in the backrest. The moulding is filled with black polyamide glue. You can choose different colours of glue. The wood used in the photos is Jatoba.

Photon logo carved in wood

Modern line

Modern line presents top quality products made of stainless steel and carbon steel. They were designed especially for the modern architecture. What makes them different is that subtle aesthetics based on simple solid, without any unnecessary ornaments.

Our plant pots

Our firm offers various plant pots in many sizes. Those plant pots can be used directly in the public places, squares, pavements but also as a great decoration for the interior design in places such as: shopping centers, museums or offices.


As a leading manufacturer in Poland we always do our best to meet the customer’s requirements. ZANO is equally comfortable and experienced designing for different types of street furniture projects. We are passionate about creating beautiful, functional, sustainable models. This is achieved through a process of focused listening that seeks to truly understand and respond to the inherent nuances of each particular client.
