Bicycle repair station Stilo 18.048

Street Furniture with style.

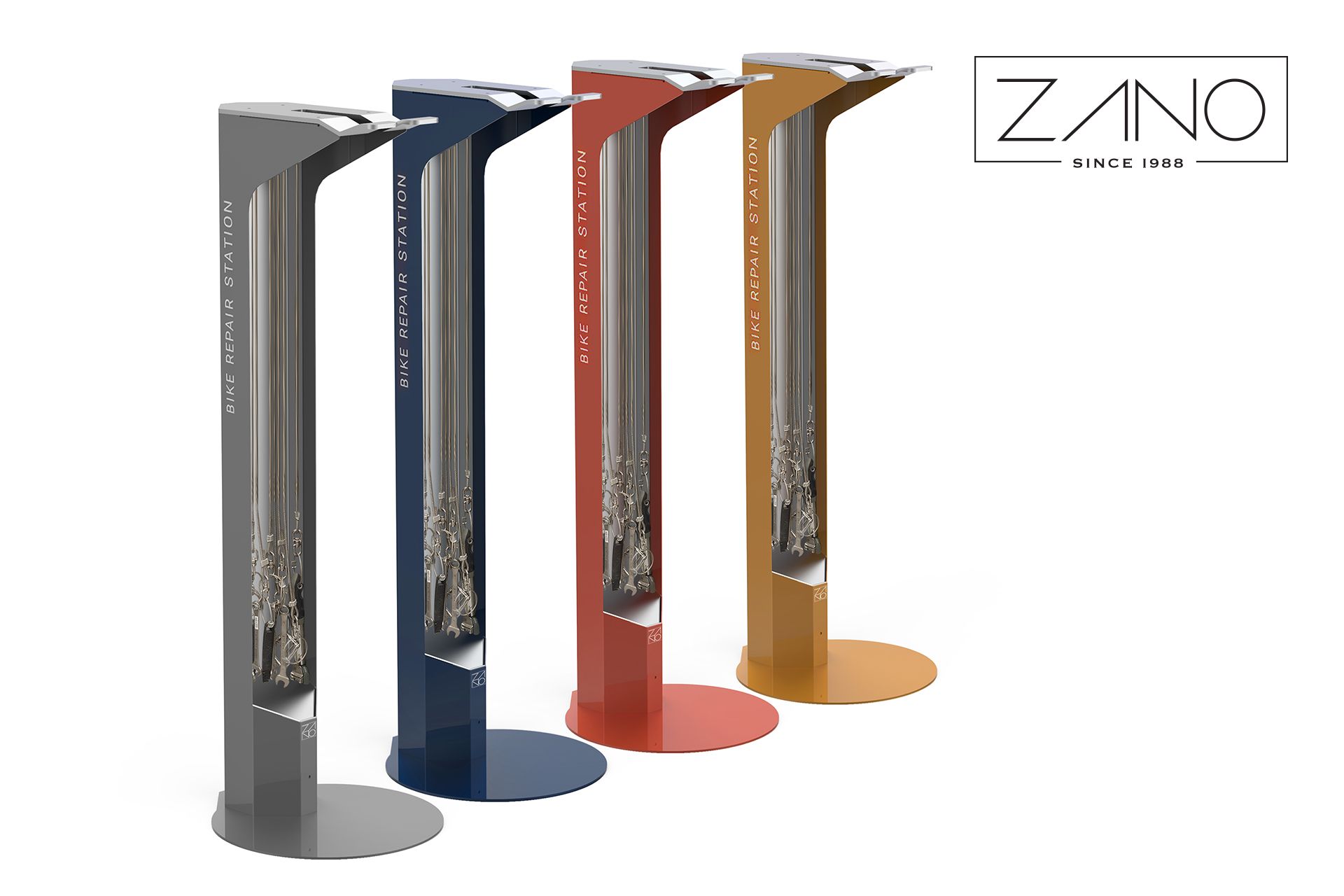

Self-service bike repair station Stilo made of carbon steel

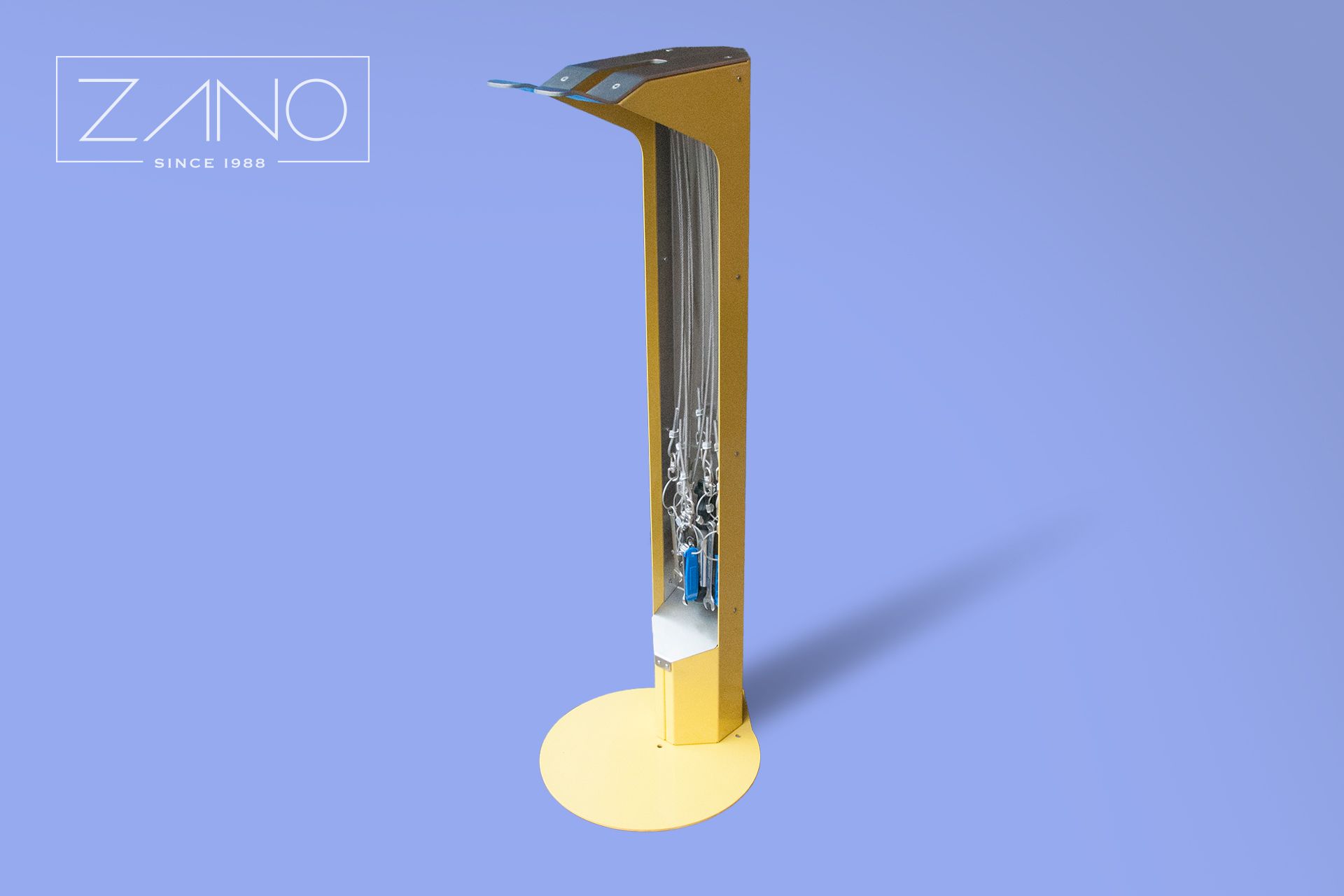

Self-service bike repair station Stilo made of stainless steel
Bicycle repair station, steel with stainless steel tools.

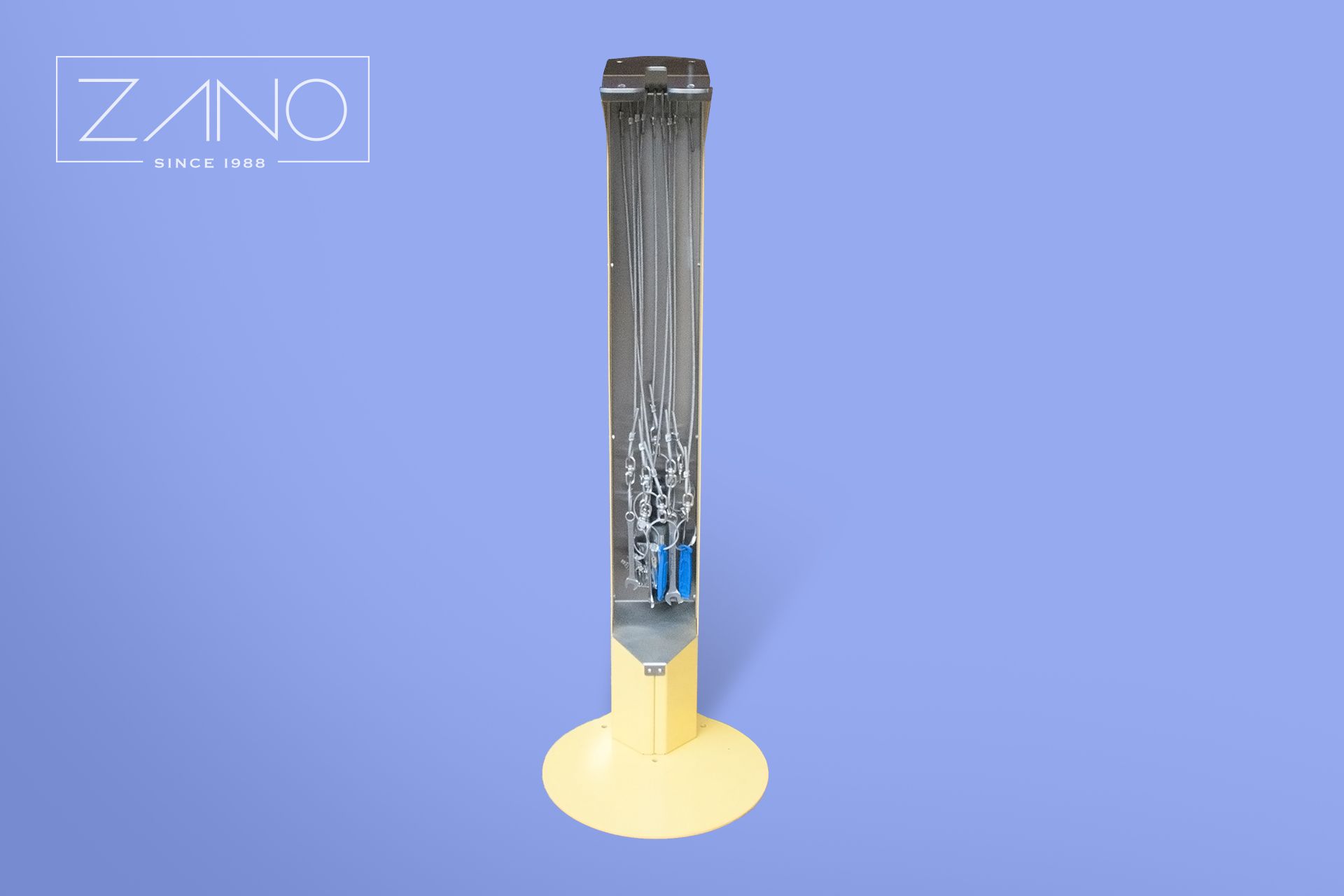

Street bicycle repair station Stilo 18.048 | ZANO
Stilo bicycle repair station with stainless steel tools
Self-service bicycle repair station
Tools for bike repair and maintenance

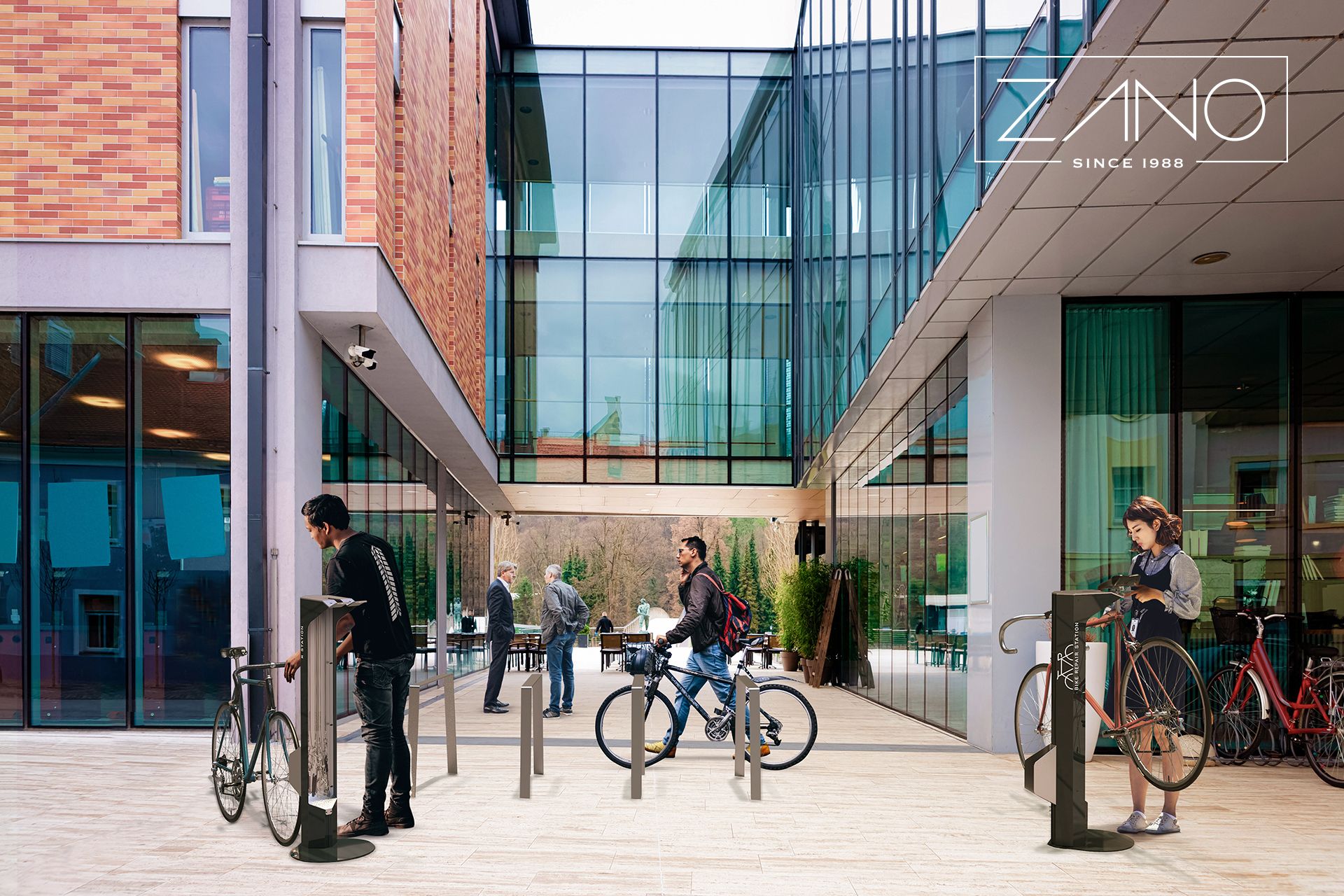

Outdoor bicycle repair & maintenance stations with tools
Public/outdoor bike work station + tools
Bike repair station with tools
Public bike repair stations by ZANO Street Furniture

specification Explore all Roll all

Materials: expand scroll down

  • stainless steel or carbon steel, galvanised and powder-coated in RAL colour

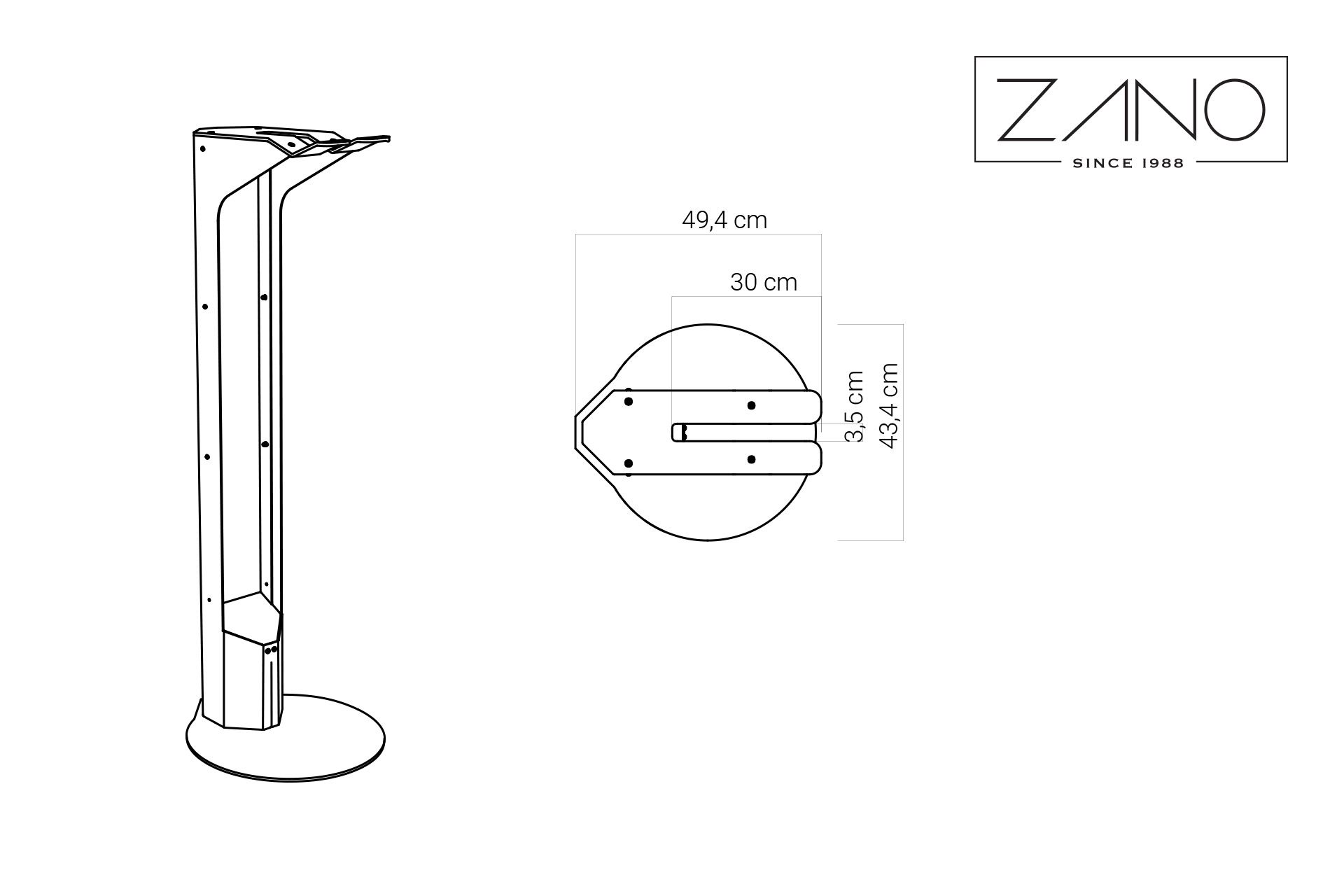

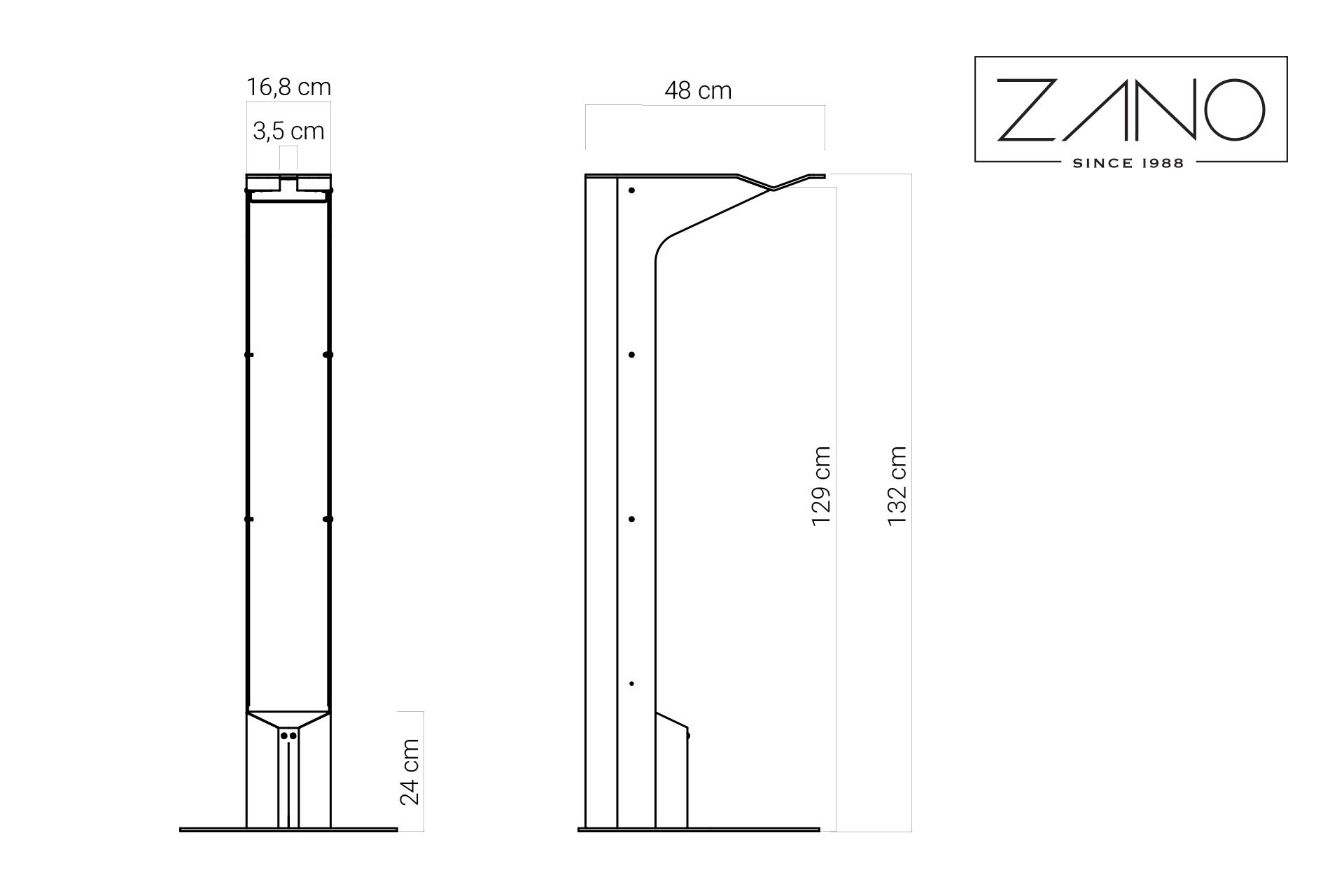

Dimensions: expand scroll down

  • width: 17 cm
  • height: 132 cm
  • depth: 48 cm
  • base width: 43 cm
  • depth with additional bike rack: 63 cm

Weight: expand scroll down

  • 29 kg

options Explore all Roll all

Methods of installation: expand scroll down

  • attached by bolts to foundation

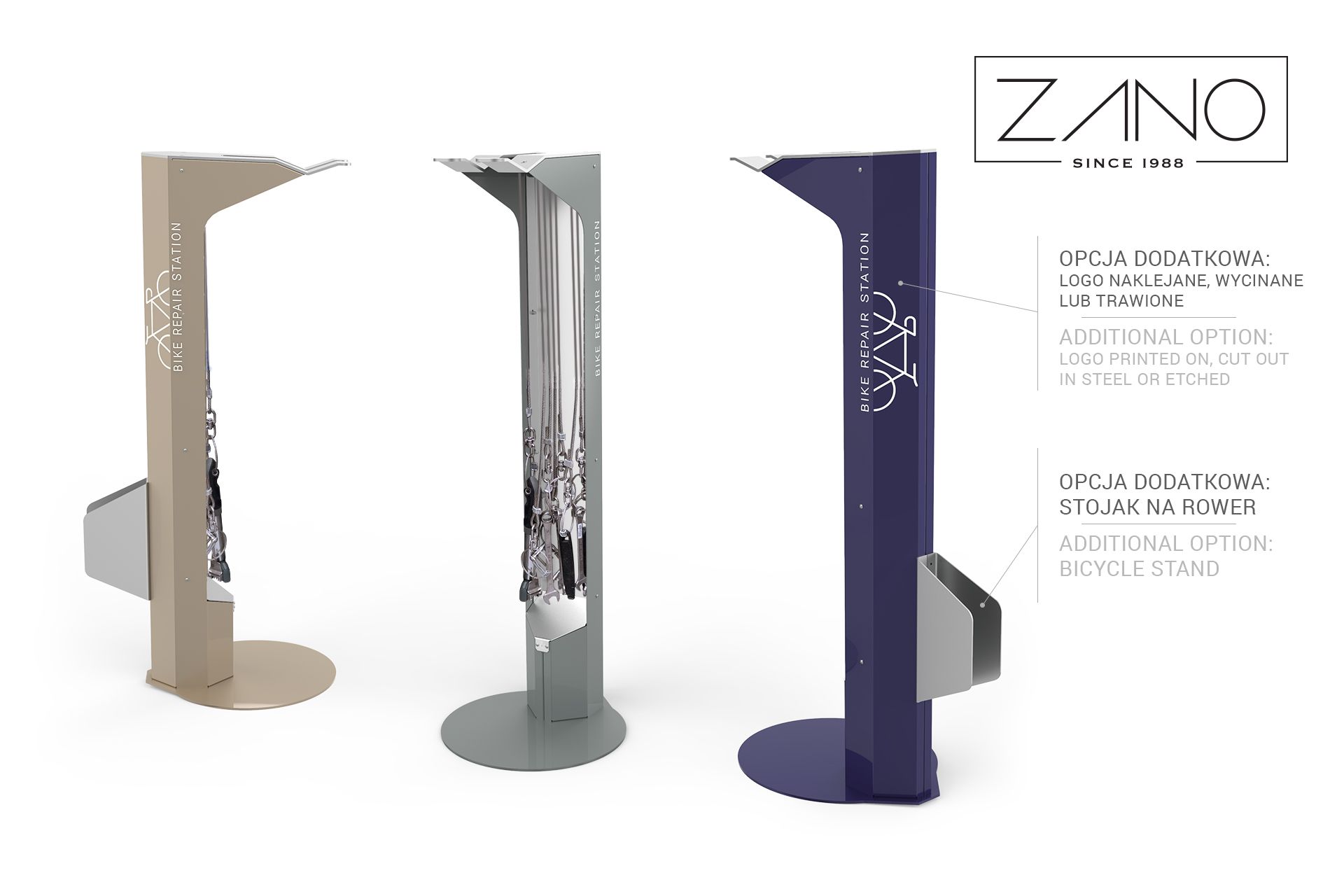

Additional bicycle rack: expand scroll down

  • none
  • one bicycle

Logo: expand scroll down

  • none
  • etching in stainless steel
  • cut in steel
  • sticker

available colours

Contact our representative in your country

Global
Designer

Original project: Iwona Żaczek

All rights reserved.

Model description

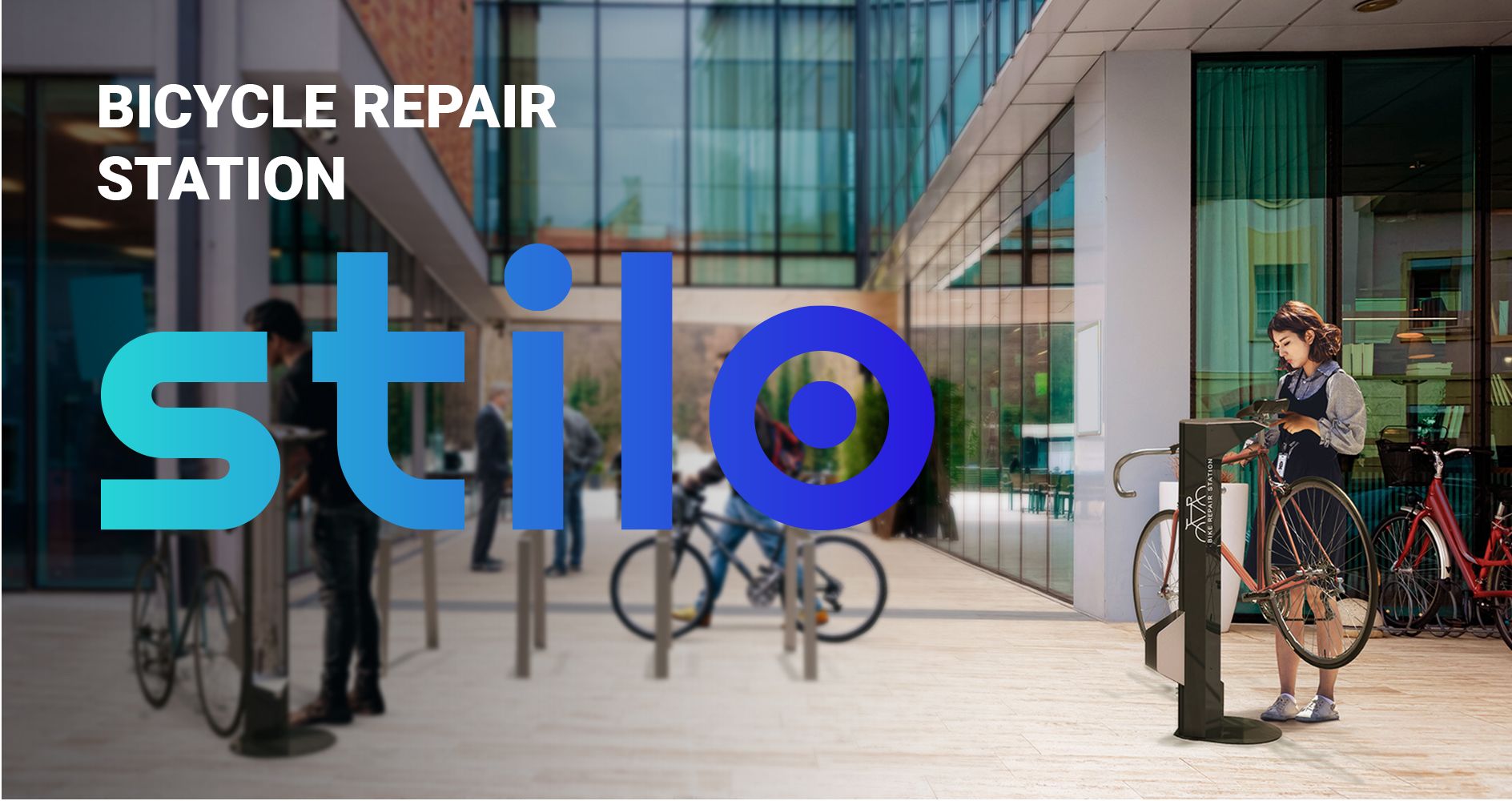

The Stilo self-service bicycle repair station was created for bicycle users to have their bike repaired and maintained easily and quickly. The station finds its application in the city by bicycle paths as well as on long-distance routes. Due to its size, the station can be used by both children and adults.

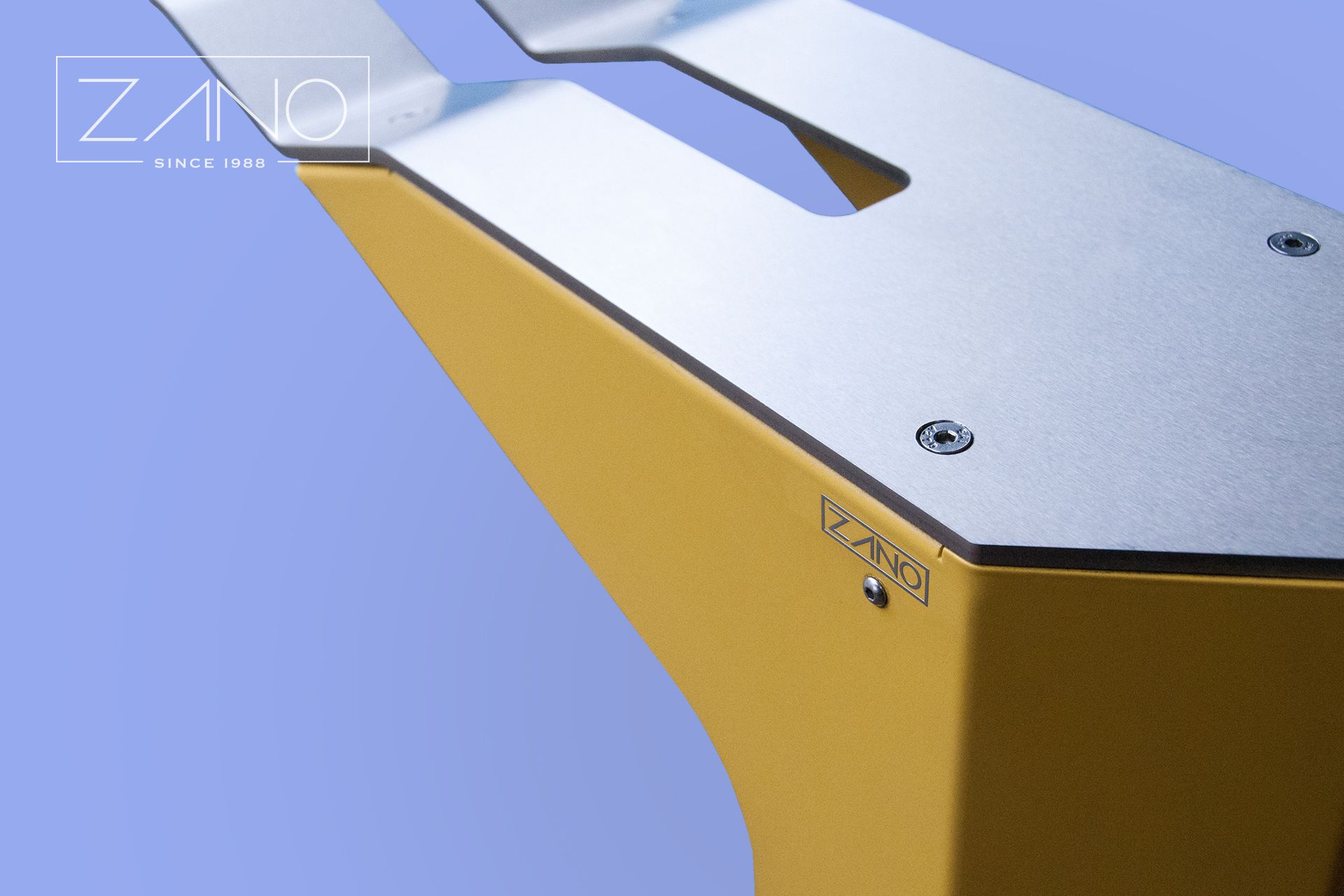

The station is made of steel. The customer can choose a model entirely made of stainless steel or galvanised carbon steel powder coated in the indicated colour RAL. In the painted version, elements such as the upper bicycle holder and the inner wall with space for tools remain in stainless steel. The station is mounted to the ground by rawl bolts. The tools for repairing a bicycle are attached to the station by steel cables in a PVC lagging, which prevents their possible theft.


Tools:

  • Screwdriver; diagonal and flat; stainless steel
  • Wrenches; stainless steel; 13, 14, 15, 16 mm
  • Allen wrenches; stainless steel; 2, 3, 4, 5, 6, 8 mm
  • Bicycle hand pump; compatible with Presta and Schreder valves
  • Bike chain splitter tool; 9, 10, 11 gears (supports SPD Shimano 11 gears, no Campagnolo 11 gears!); stainless steel
  • Spoke wrench (nipple); Mavic MTB, 3.22, 3.45 and CNSPOKE key (3.2-3.3-3.4 mm); stainless steel
  • Star key T 25; stainless steel
  • 8 mm disc brake wedge + bottle opener; stainless steel
  • Tire spoons; suitable for removing tubeless tyres and high strength plastic wire mesh tyres

stilo-bicyle-repair-station

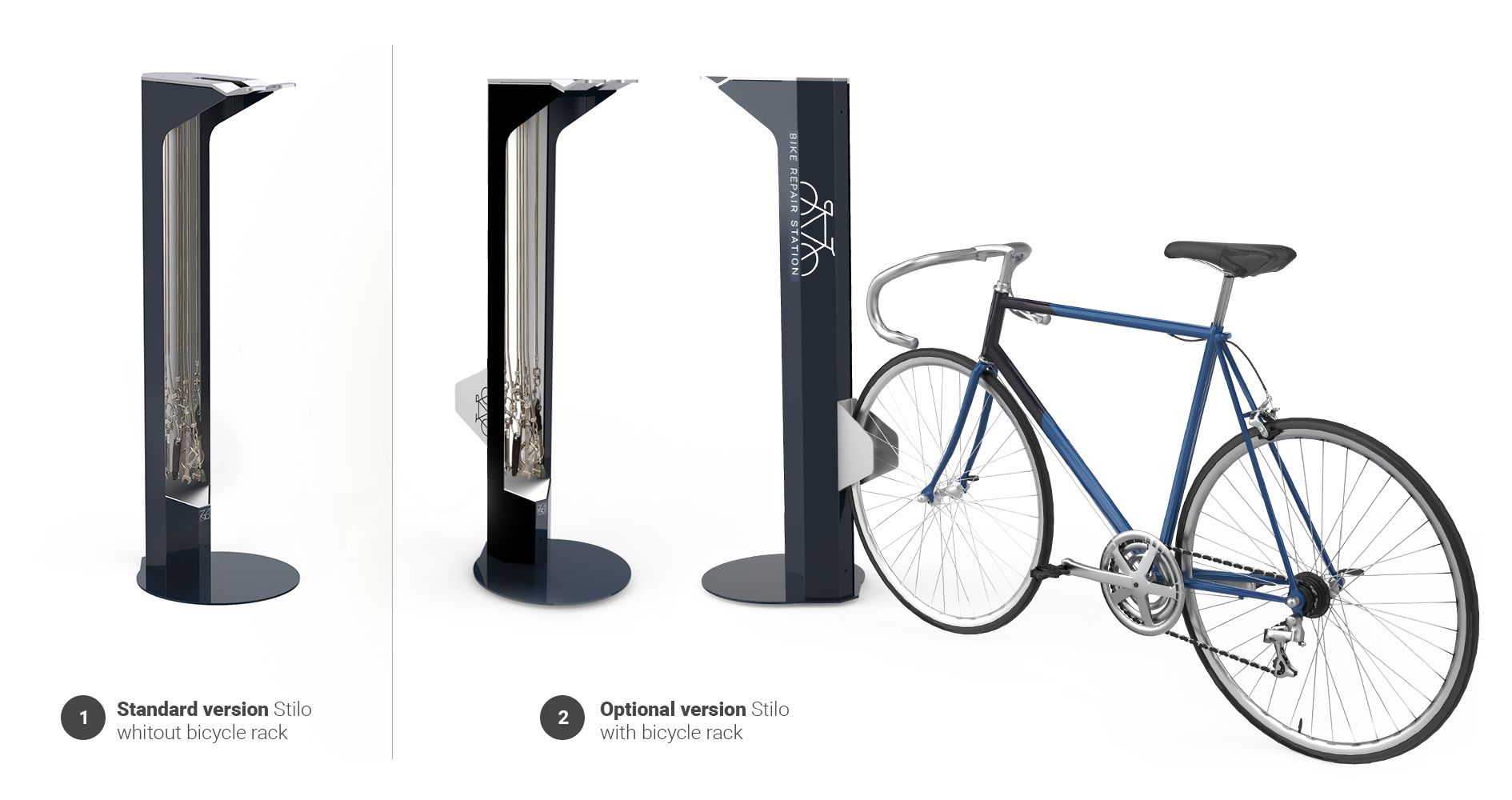

Additional bicycle stand

Two versions of the repair station are available. The first one, basic one - without a bicycle stand. The second - with an additional bicycle stand made of stainless steel. With the stand we can place two bikes at the station.

Stilo - self-service bicycle repair station with bicycle stand

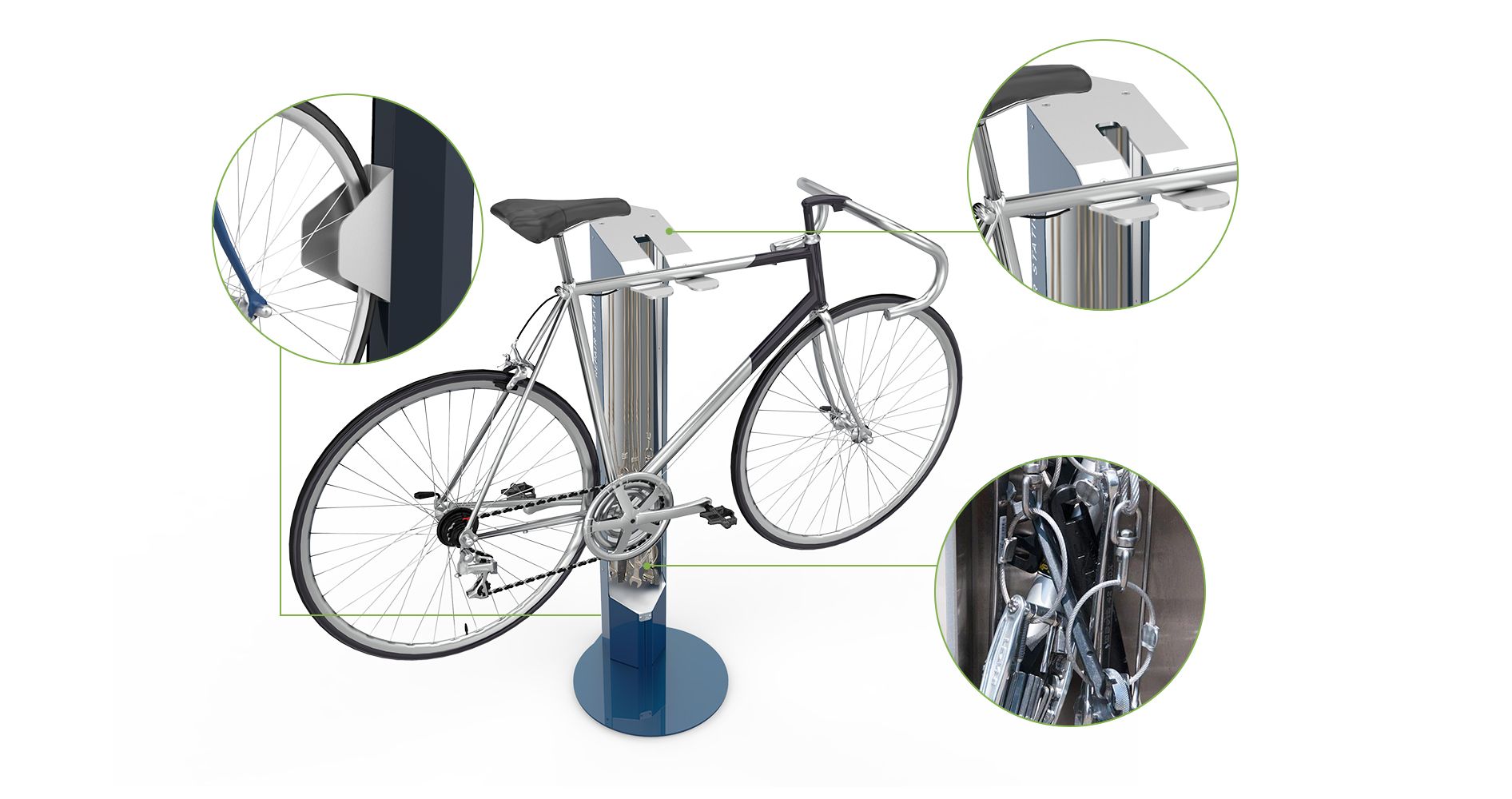

Station equipment

Two versions of the repair station are available. The first one, basic one - without a bicycle stand. The second - with an additional bicycle rack made of stainless steel. Using the rack we can place two bikes at the station.

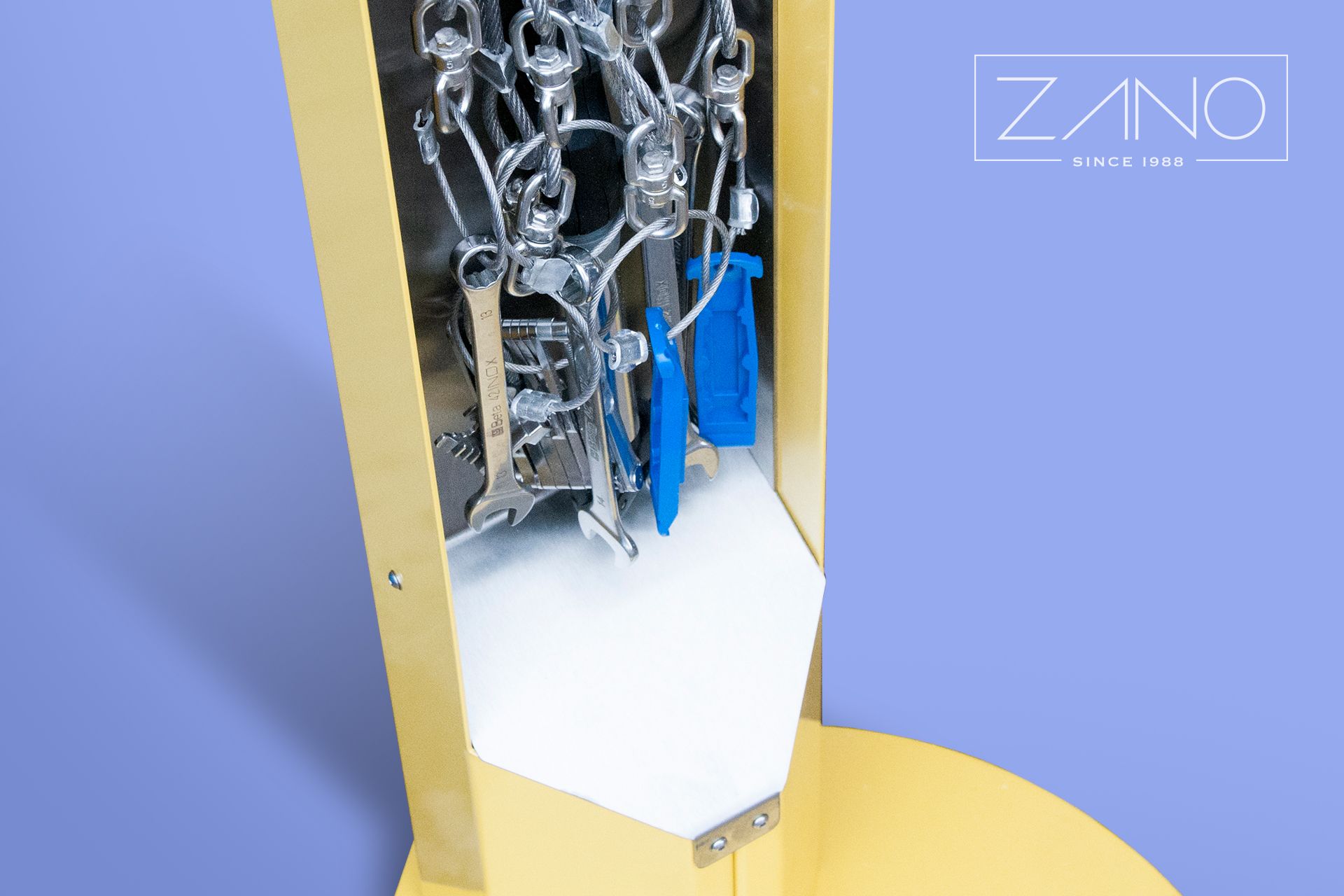

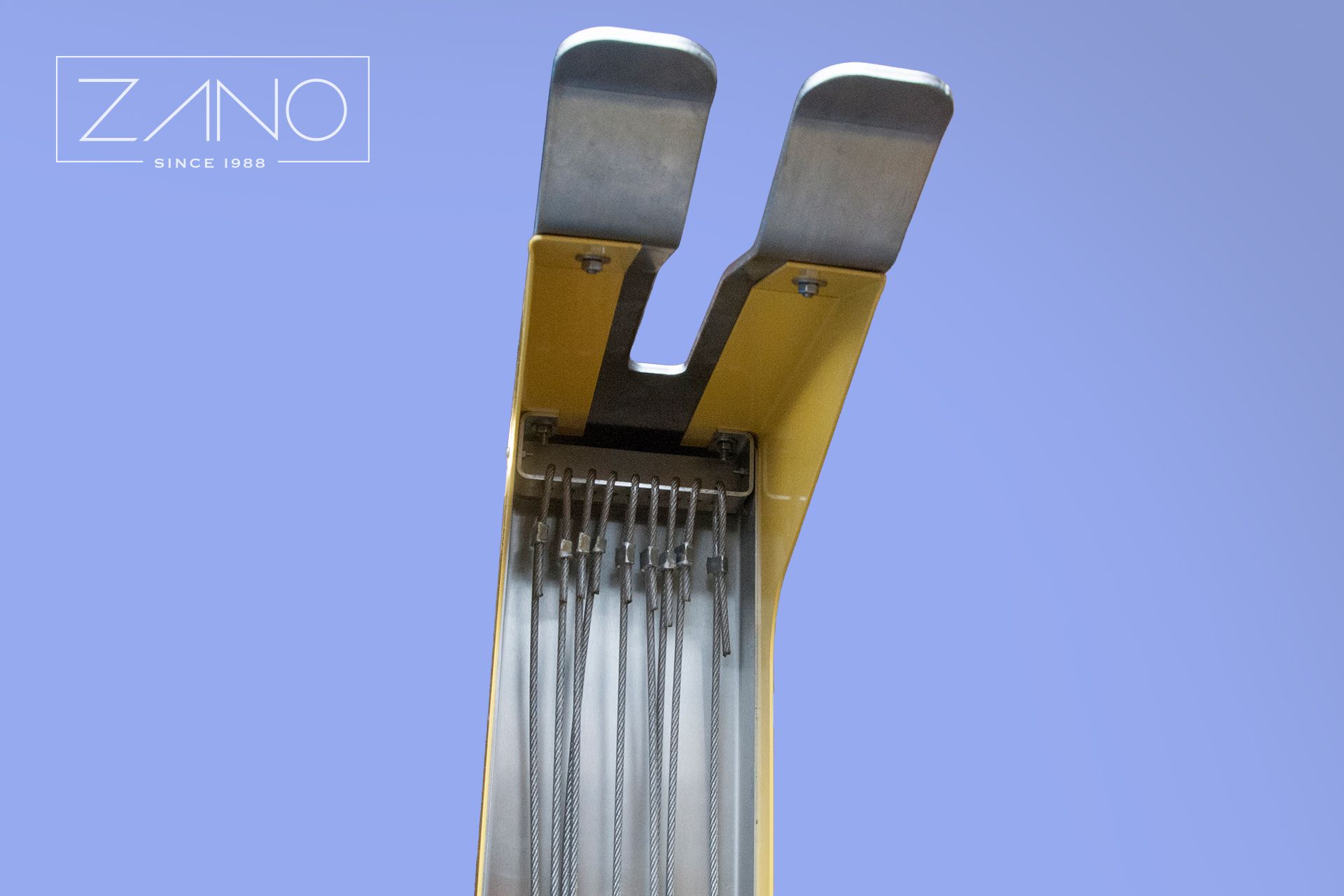

Tools in the station

The repair station has 22 tools made of stainless steel and high quality plastic (tire spoons). The tools are connected to the steel cords by means of steel swivels. This allows comfortable use of the tools (the tools do not twist) and allows access with the tool to any place on the bike hanging on the holder.
